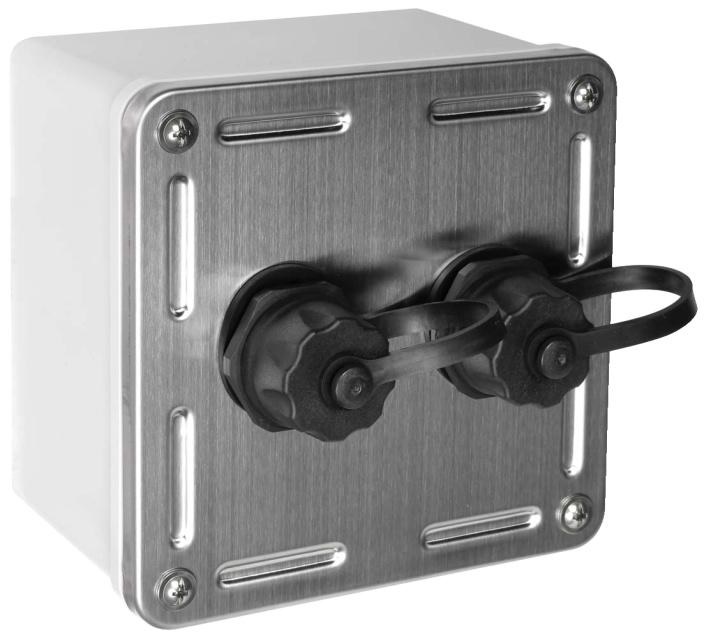

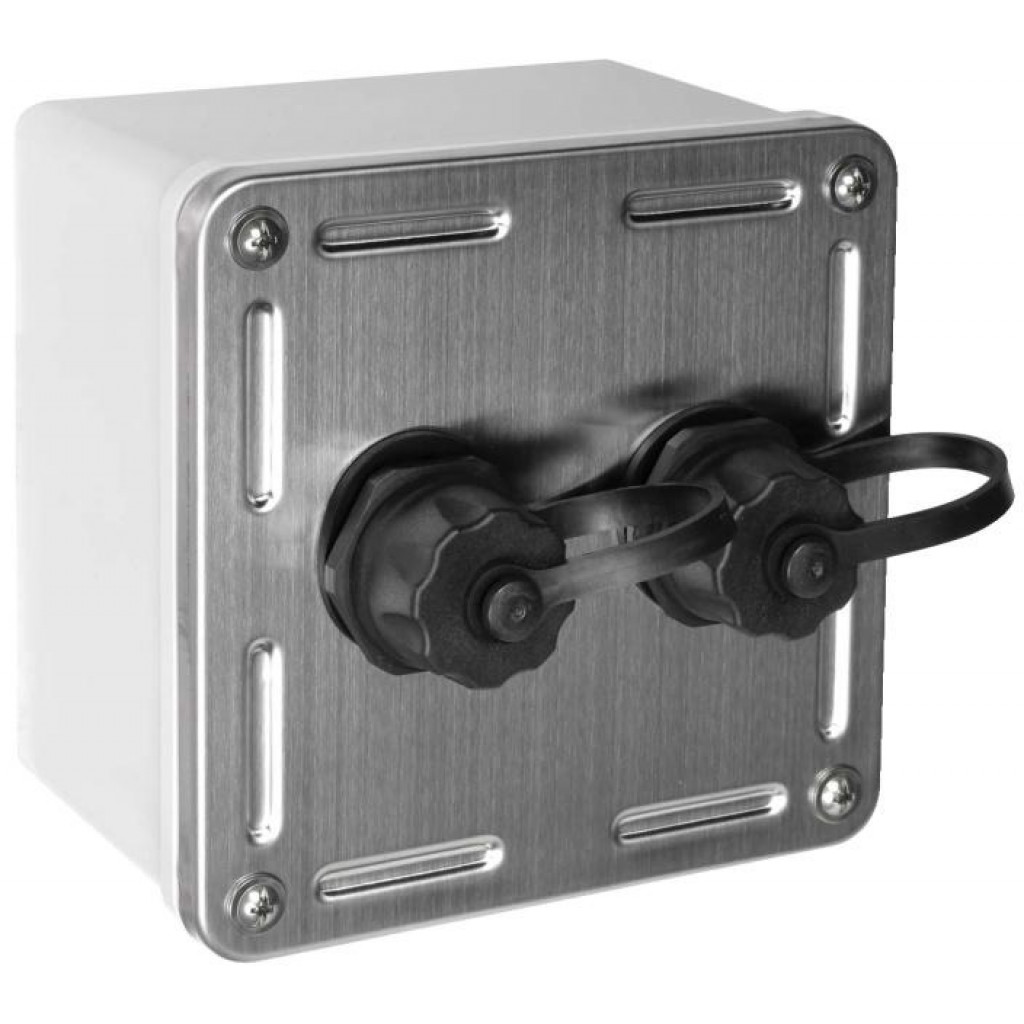

BC Maritime Outlet IP67 w/2xCat6a

Application
The outlet comes with a Cat6A Screened connector for harsh environment with IP 67 impact for outdoor use.
Two versions with Cat6A: One or two RJ45 outlets. Comes complete loaded and with gland and Cat6A IP67 connector.
Fits together with our IP patchcords IP67 to IP67 or IP67 to IP20.
Can also use outlets with LC fiber optic connector and/or Cat6a connector.

Standards
EN 50173-1; ISO/IEC 11801 Cat.6A, IEC 60603-7-51

Construction, Mechanical and Measurement
Front in stainless steel and back box in hard polylac ABS plastic. UL 94V-0
Connector Insertion / extraction life: 750 Cycles minimum.
IDC wire Gauge: 22-24 AWG.
L x W x H (for the box itself): 120 x 120 x 67mm
L x W x H (with connector(s) installed):120 x 120 x 95mm
Weight (BC-12-021): 530g
Weight (BC-12-024): 584g
