BC Wall box IP66 for 2xCat6a STP keystone, empty

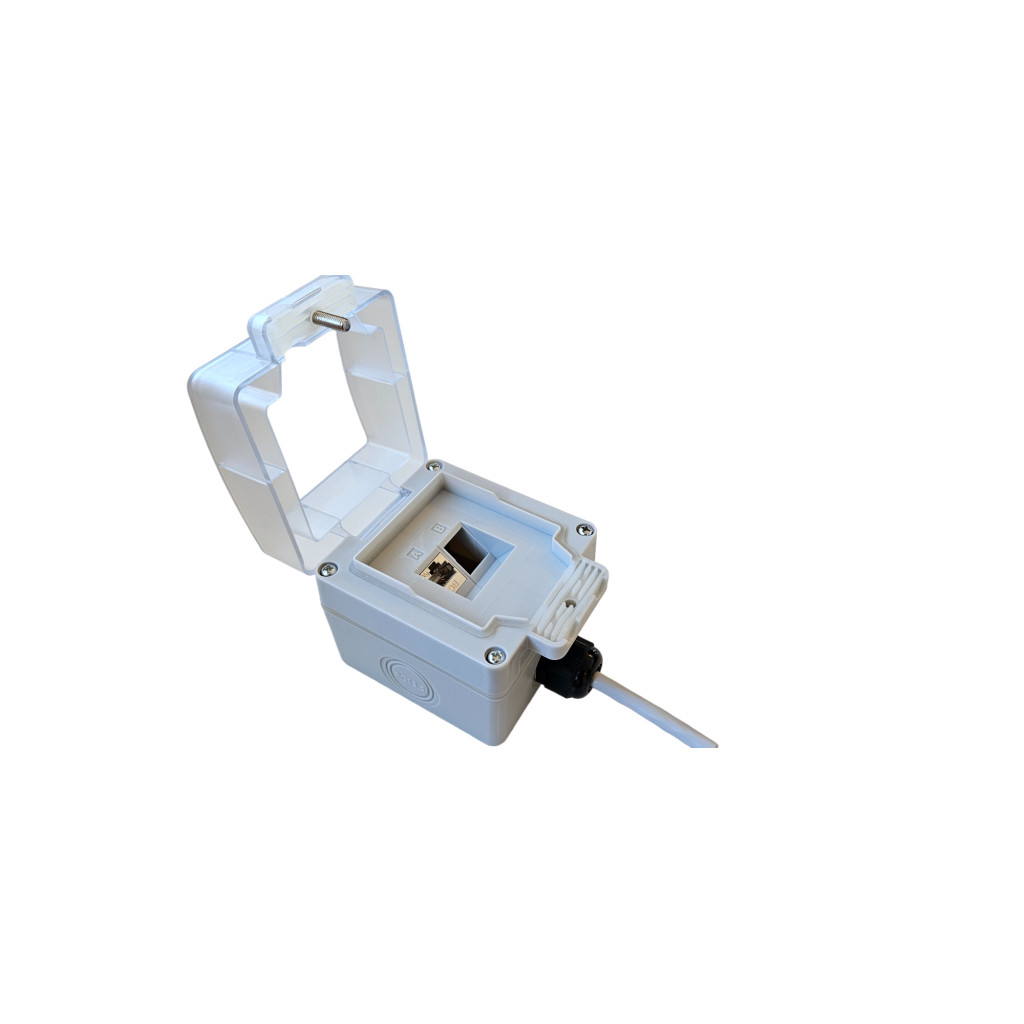

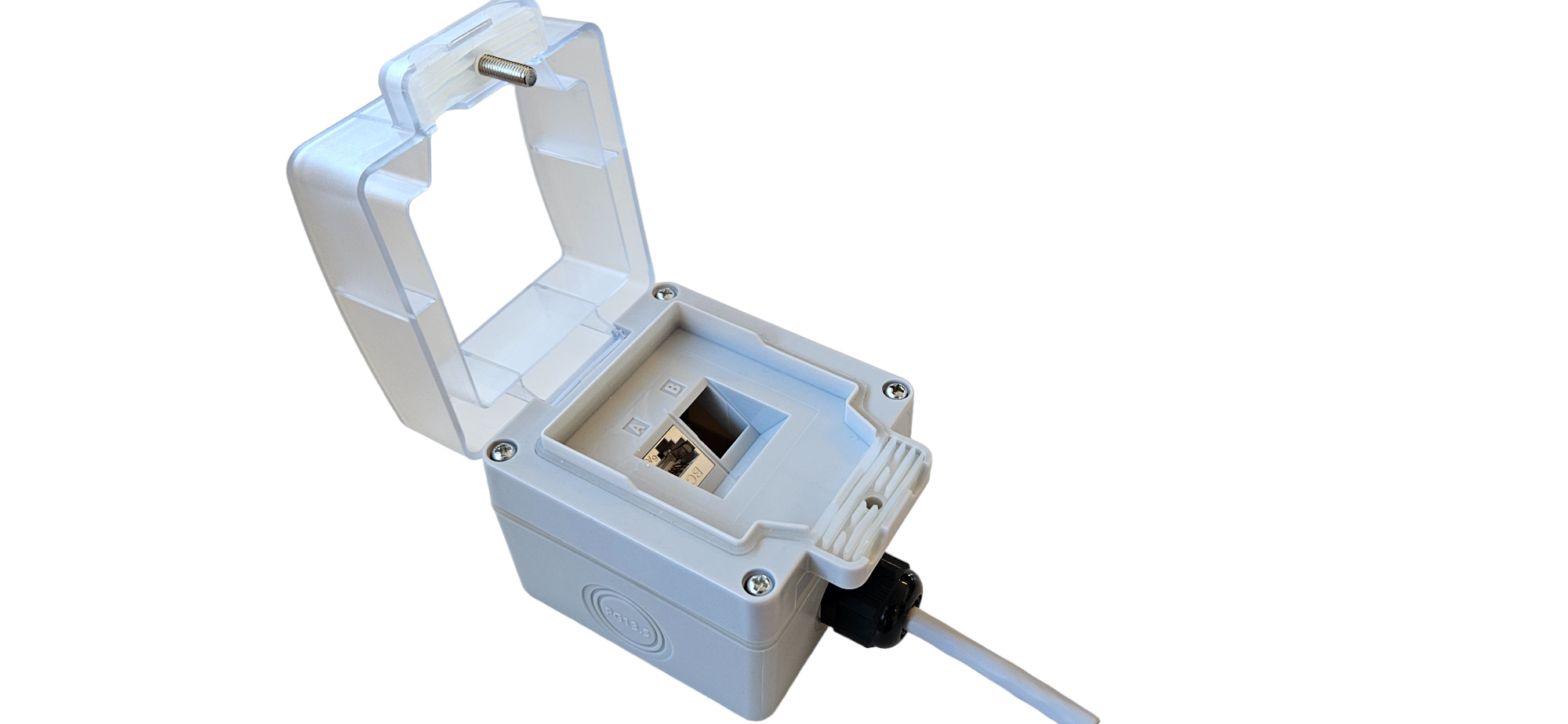

IP66 Wall Outlet for DNV approved Cat6a Keystone connector
The IP66 wall outlet for Bergen Cabling Cat6a Keystone connector is developed for installation in harsh
environments indoors and outdoors that requires extra protection against dust and water.
The outlet has a unique construction that allows it to provide IP66 protection even when a patchcord is
attached and the lid screwed tight.
The outlet is delivered with screws, 2 pcs of PG13.5 glands. Cat6a connectors have to be bought
separately.There are cable entries on all four sides as well as on the back plate.

Standards
Certified according to standard ISO11801 2. ed / EN50173-1 and support application up to and including 10
Gigabit Ethernet (10GBase-T) (when used with BC-11-004/BC-11-006 Cat6a connector).
The product is approved for use in Bergen Cabling 10 Gigabit Link solution.

Technical data
• IP66 rated
• Single or double Cat6a RJ45
• Measurements: 83x83x90mm (l x h x d)
• Produced in halogen free and 100% recycled materials
