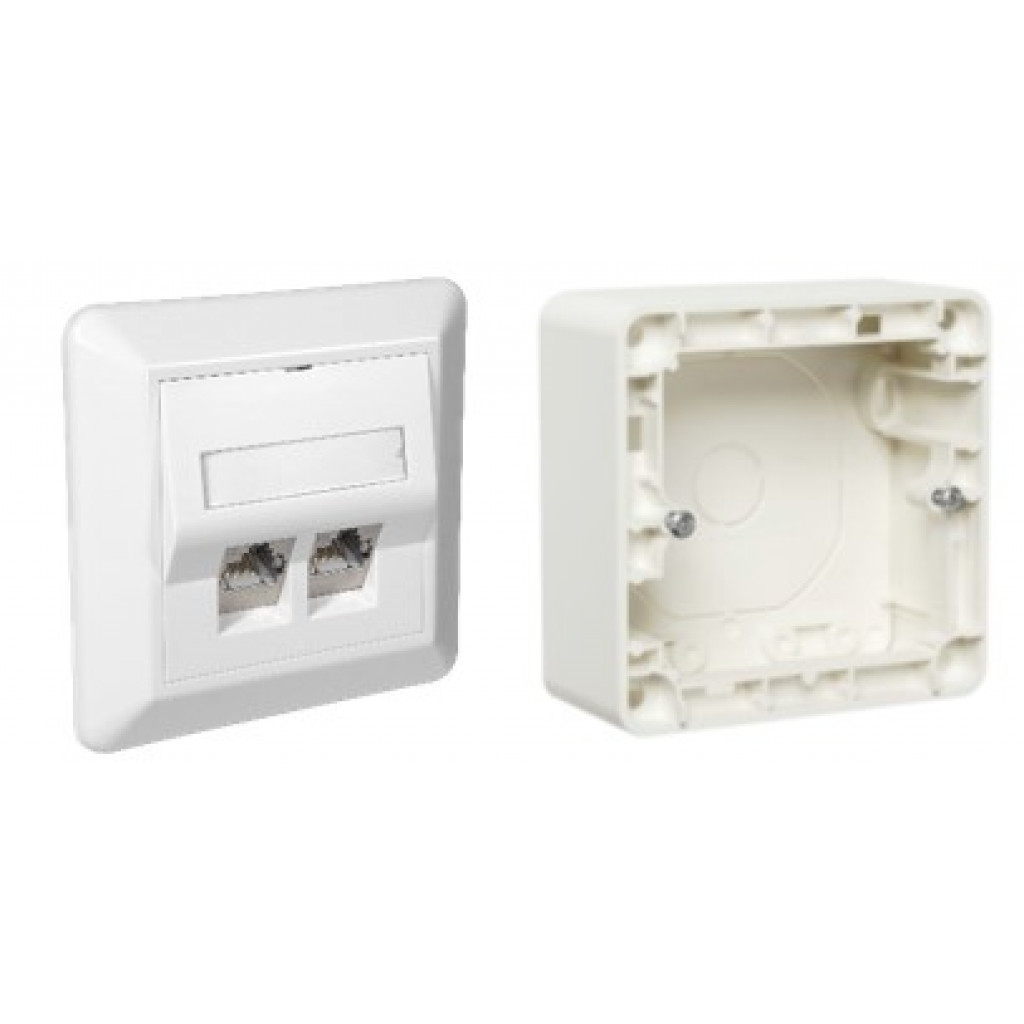

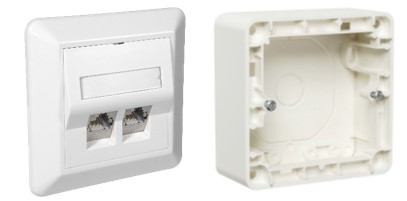

BC Outlet 2xRJ45 STP Cat6A RS Angled, Keystone w/wallbox

Wall outlets with Bergen Cabling Cat6A Keystone connector are well suited for installation in trunk system, electrical
poles and floor box solutions. All outlets are supplied with dust shutters and a big and easy to see field for label with
protection for durable labelling.
All wall outlets are supplied with connectors and frames.
The trunking systems supported are Schneider, Rehau, OBO Bettermann, Thealitt, Maxeta, Hager, LeGrand and
Satema.

Standards
Certified according to standard ISO11801 2. ed / EN50173-1 and support application up to and including 10 Gigabit
Ethernet (10GBase-T). All outlets are produces in halogen free and 100% recyclable material.
The product is approved for use in Bergen Cabling 10 Gigabit Link solution, and DNV approved.

Measurements (on products with RS16 style frame)
Frame outer dimensions: 84 x 84 mm
Frame inner dimensions: 55.95 x 55.95 mm
Backbox depth: 33 mm

Wall outlets with Bergen Cabling Cat6A Keystone connector are well suited for installation in trunk system, electrical poles and floor box solutions. All outlets are supplied with dust shutters and a big and easy to see field for label with protection for durable labelling. All wall
