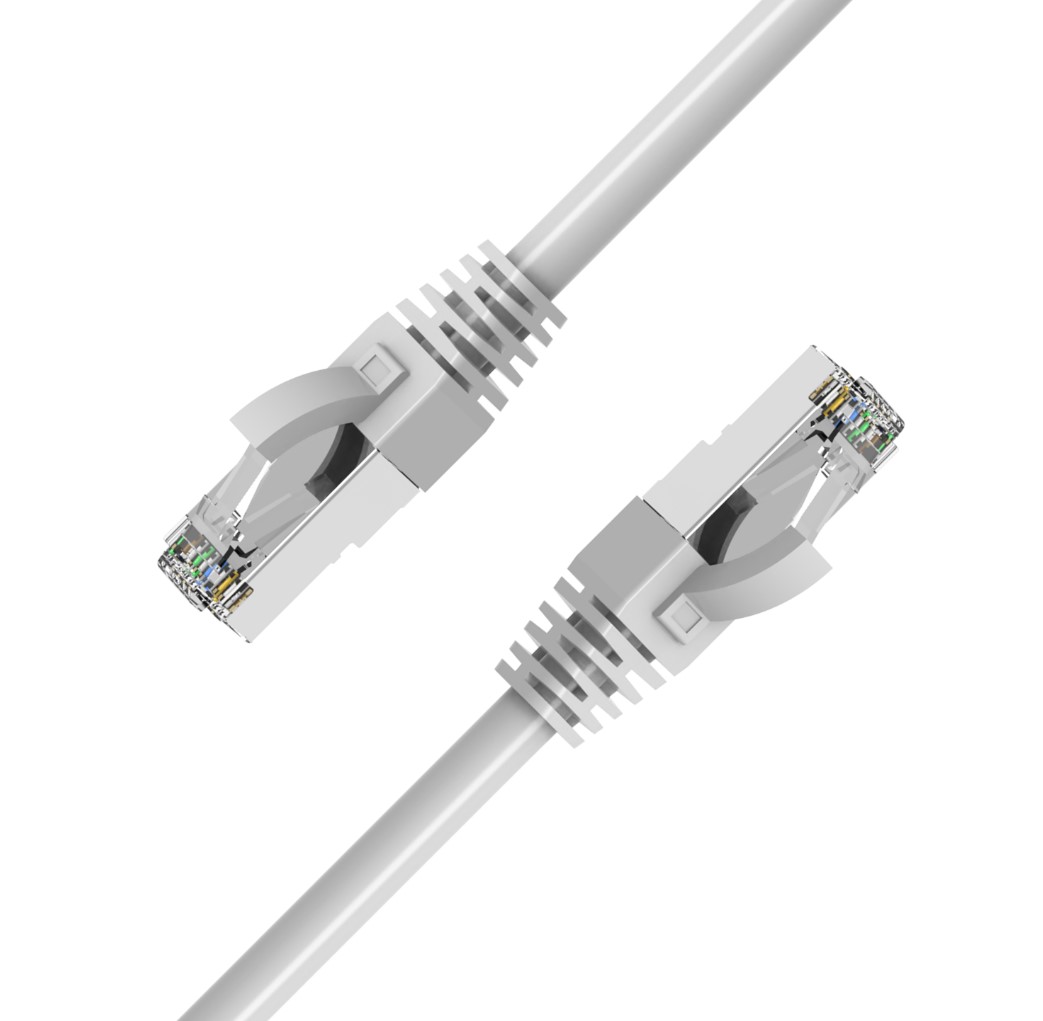

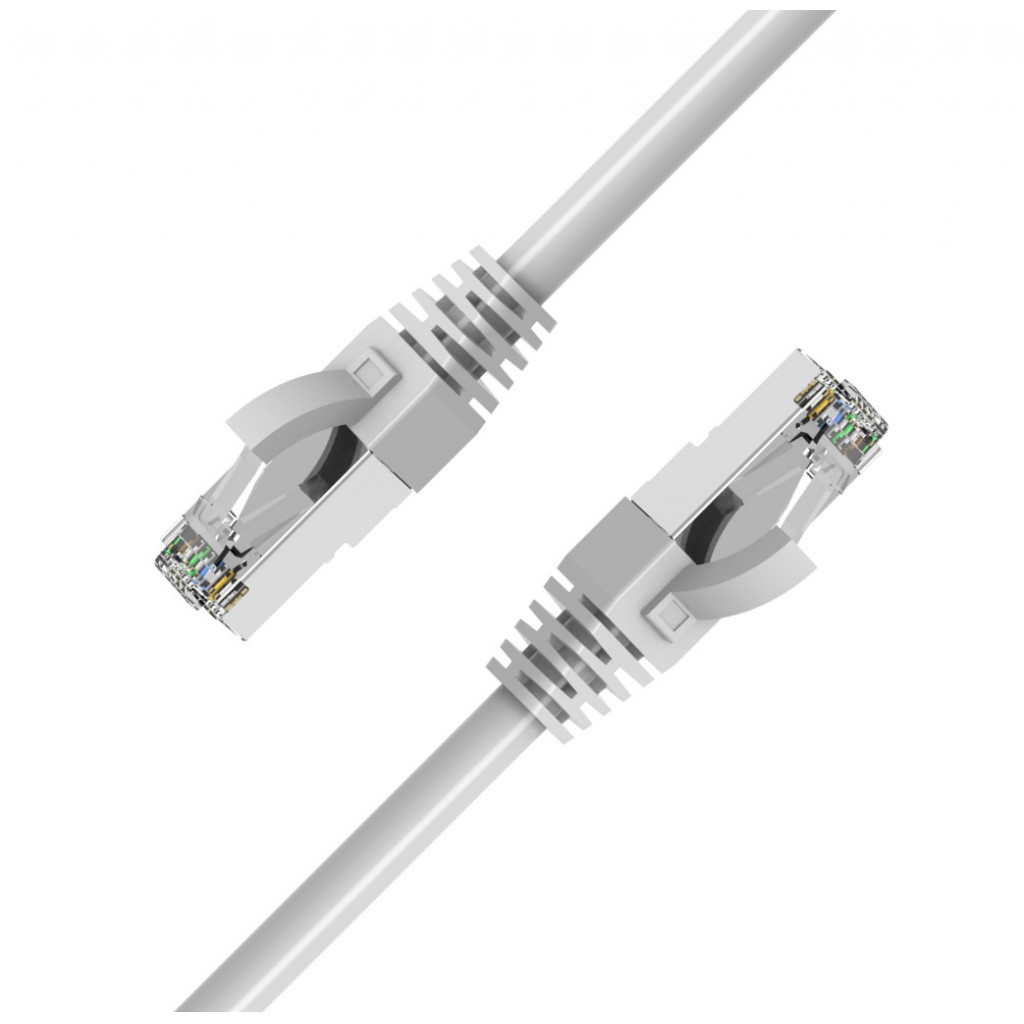

BC Patchcord Cat6A S/FTP LSOH-FR 1m Grey

BC Patchcords Cat6a S/FTP grey. Low smoke halogen free and flame retardant.

AWG26/7

Features
TIA/EIA-568B.2-1;ISO/IEO 11801;NEC/CEC
Fire protection – IEC60332-1 (CM)
Application: Horizontal communication cable; for indoor installation

Wiring Scheme
ANSI/TIA/EIA-568-C.2: T568A & T568B
ISO/IEC 11801: 8-position conductor/pair assignment (1-2/3-6/4-5/7-8)

Transmission Performance
NSI/TIA-568-C.2: category 6A (1-500 MHz) specifications

Cordage
Construction: 4 pairs, 7 strands, 26 AWG, S/FTP
Cable Type: S/FTP Cat6A Patch Cable
Outer Cable Diameter: 6.0mm ± 0.2 mm
Pair Identification: Pair1= Blue/White Pair2= Orange/White
Pair 3= Green/White Pair4= Brown/White
Outer Jacket: LSZH-FR Jacket
Plug
Type:Shielded RJ45 8P8C Modular Plug
Housing: UL listed 94V-0/1/2 flame retardant polycarbonate
