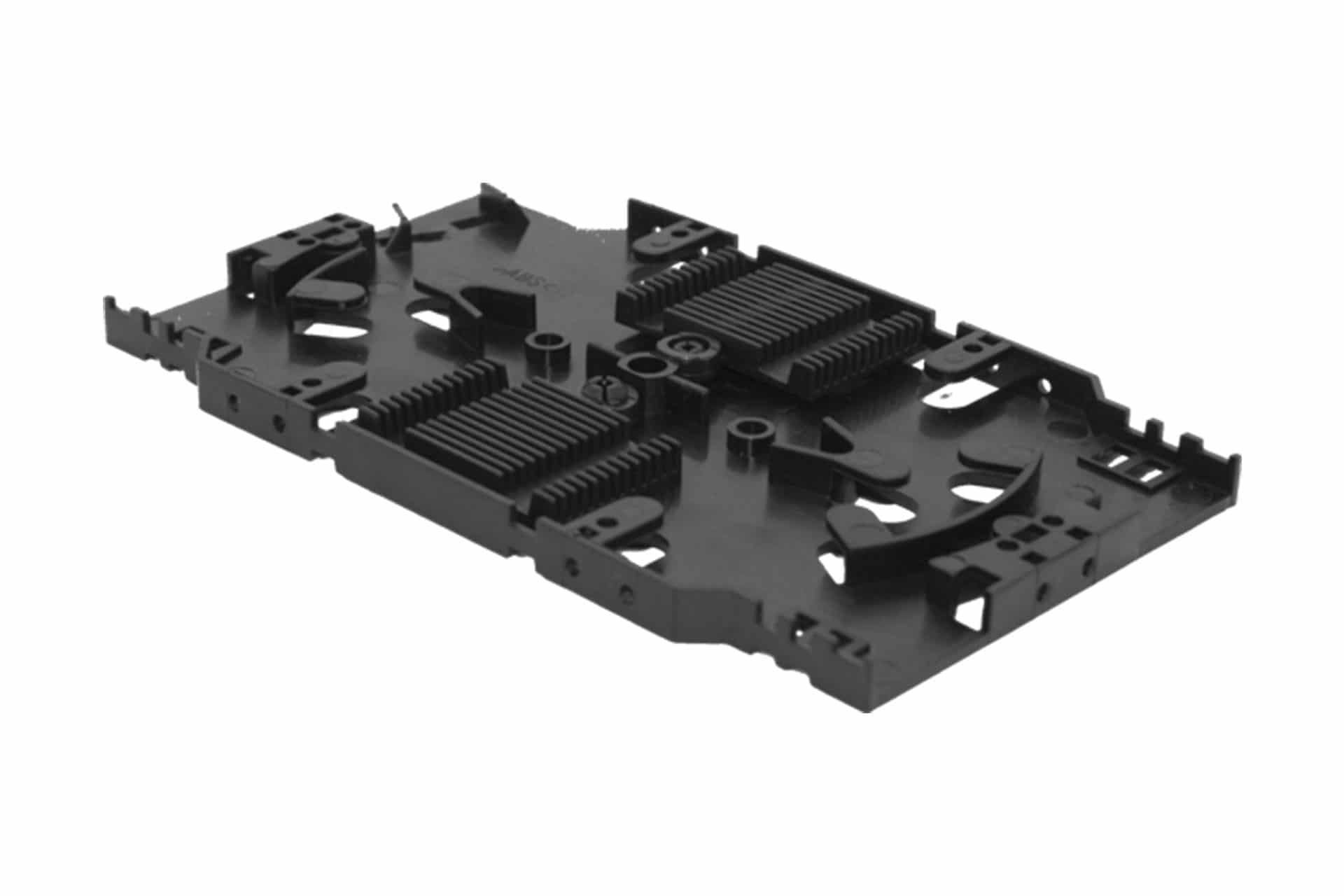

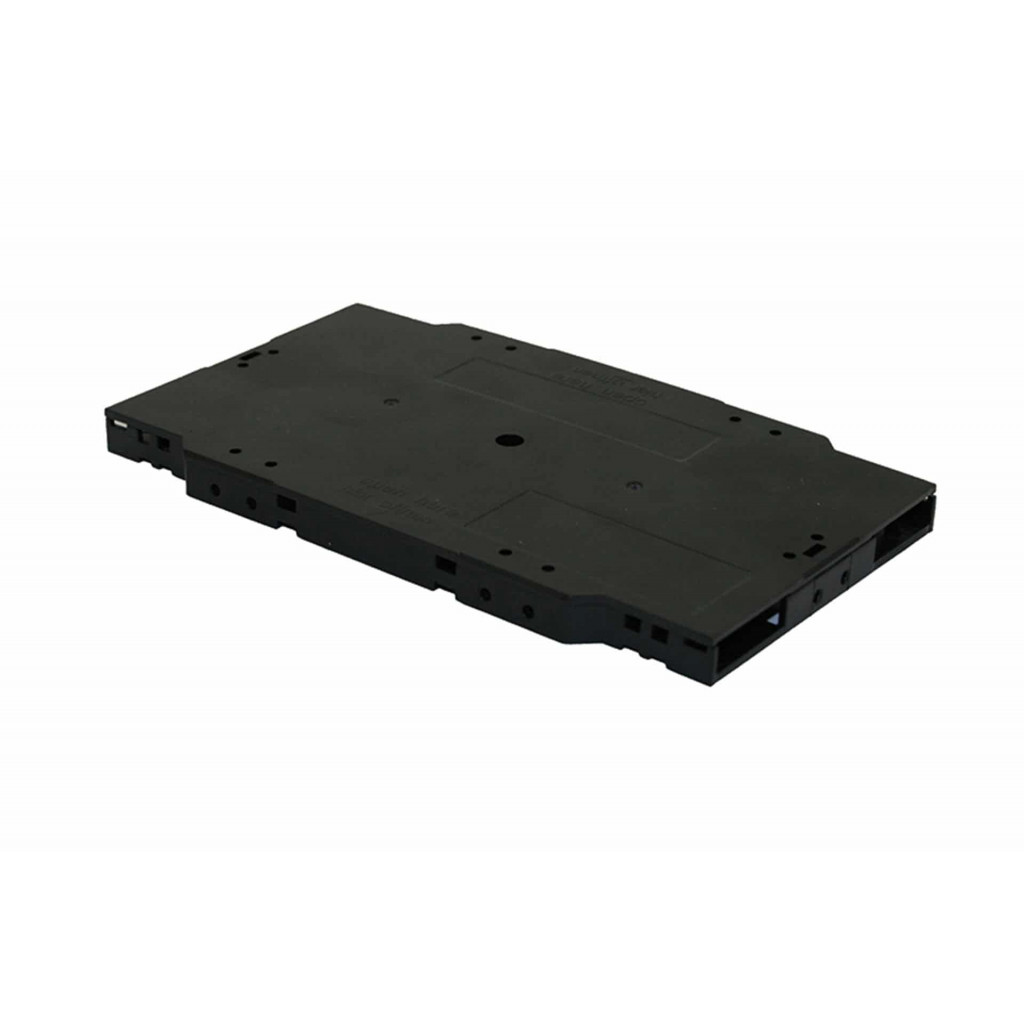

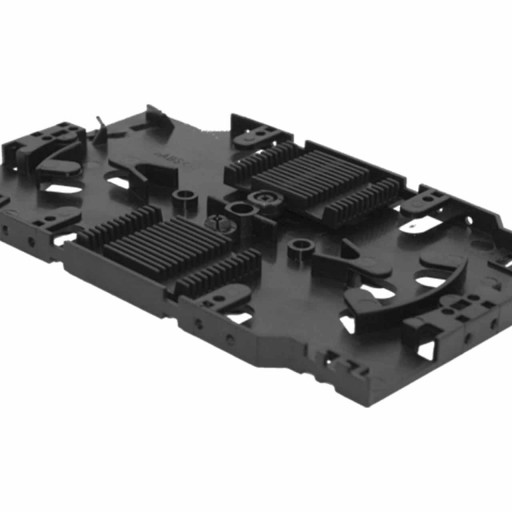

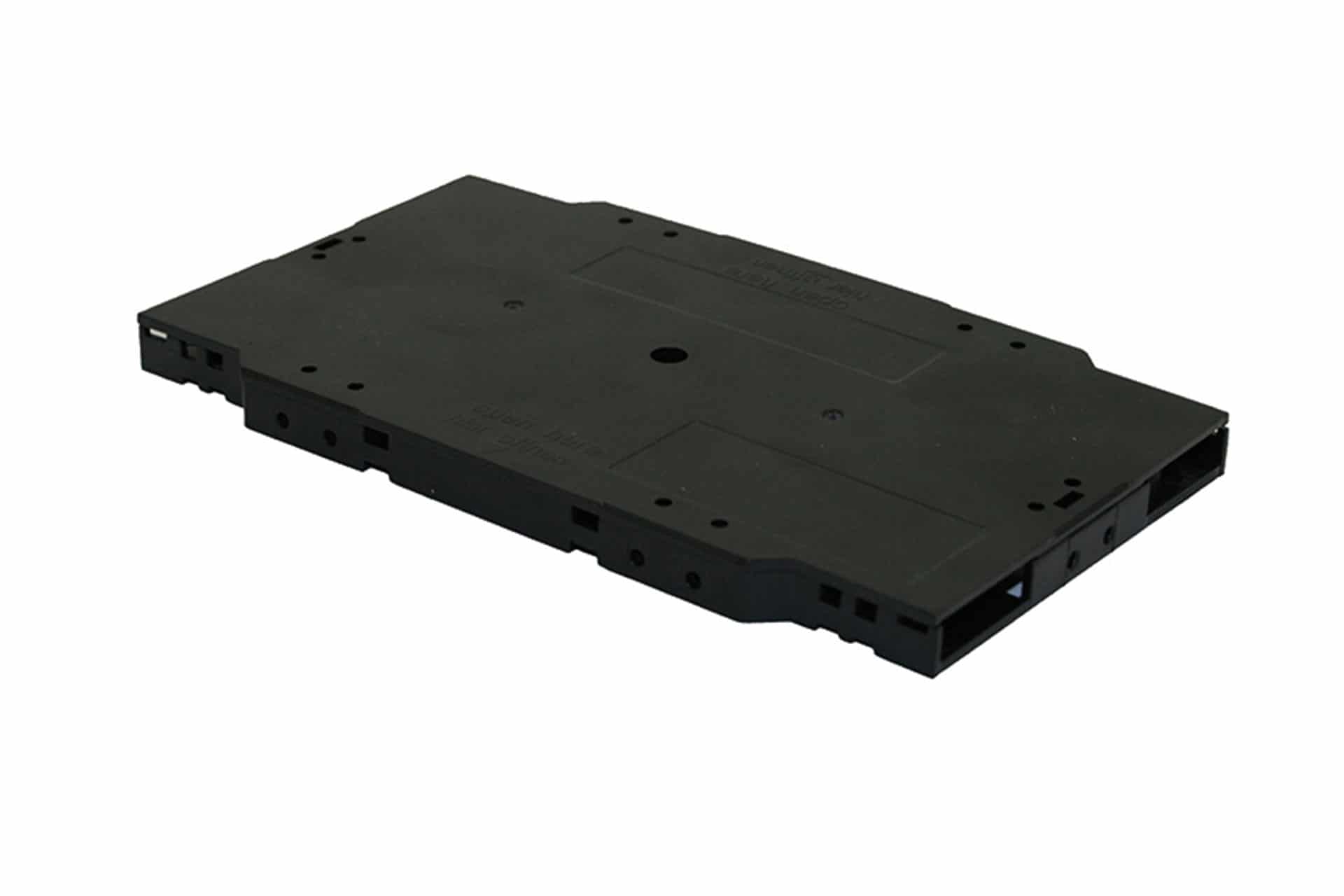

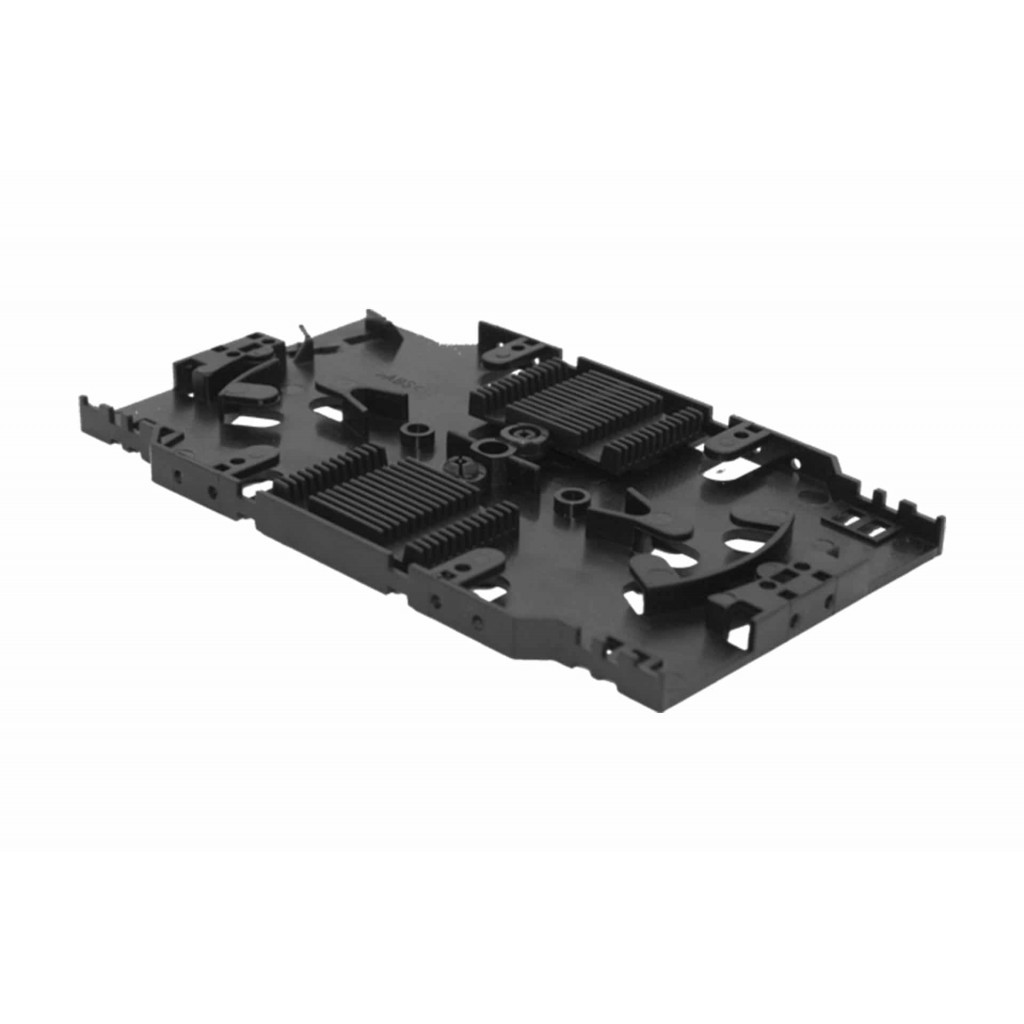

Splice tray kit for 12 heat shrink splices, black with lid

SKU:SPT03

Share this product

Product Overview

This kit includes a splice tray that offers protection for up to 24 splices, lid and splice holders (either heat shrink or crimp type). The tray ensures the minimum bend radius is protected and has multiple cable entry points.

Features

Up to 12 heat shrink splices
Up to 24 crimp style splices
Cable tie points to secure fiber on entry and exit
Mountable via central DIN style holes
Includes tray, lid and splice holders

Applications

Fiber Management
Internal and external
Wall Boxes
Patch Panels

Specifications

Element	Value
Width	92mm
Depth	155mm
Height	10mm
Weight	60g
Material	ABS
Colour	Black
Operating temperature	-40°C to +60°C
Designed in accordance with	TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,
Materials Compliant to	RoHS, Reach/SVHC
