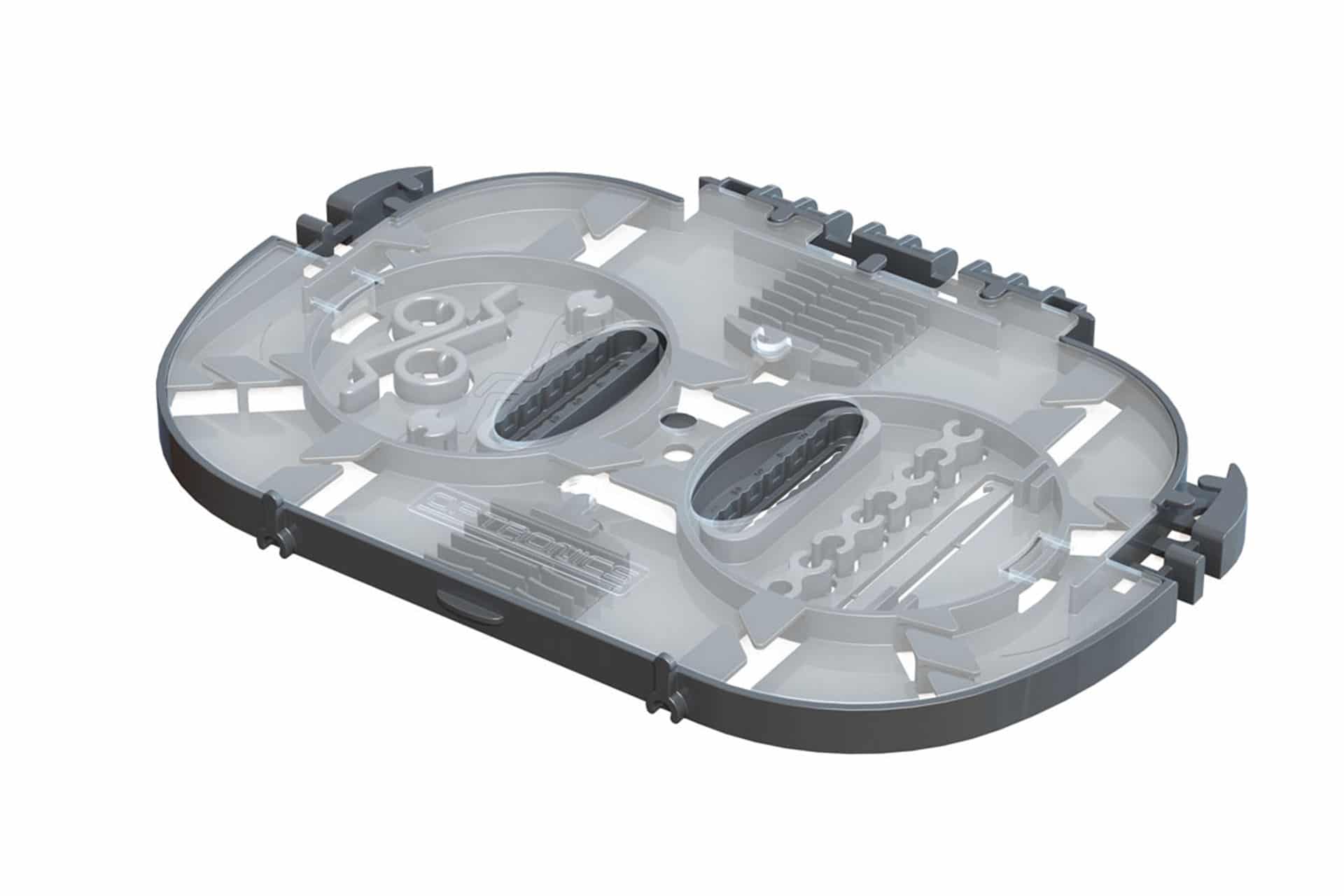

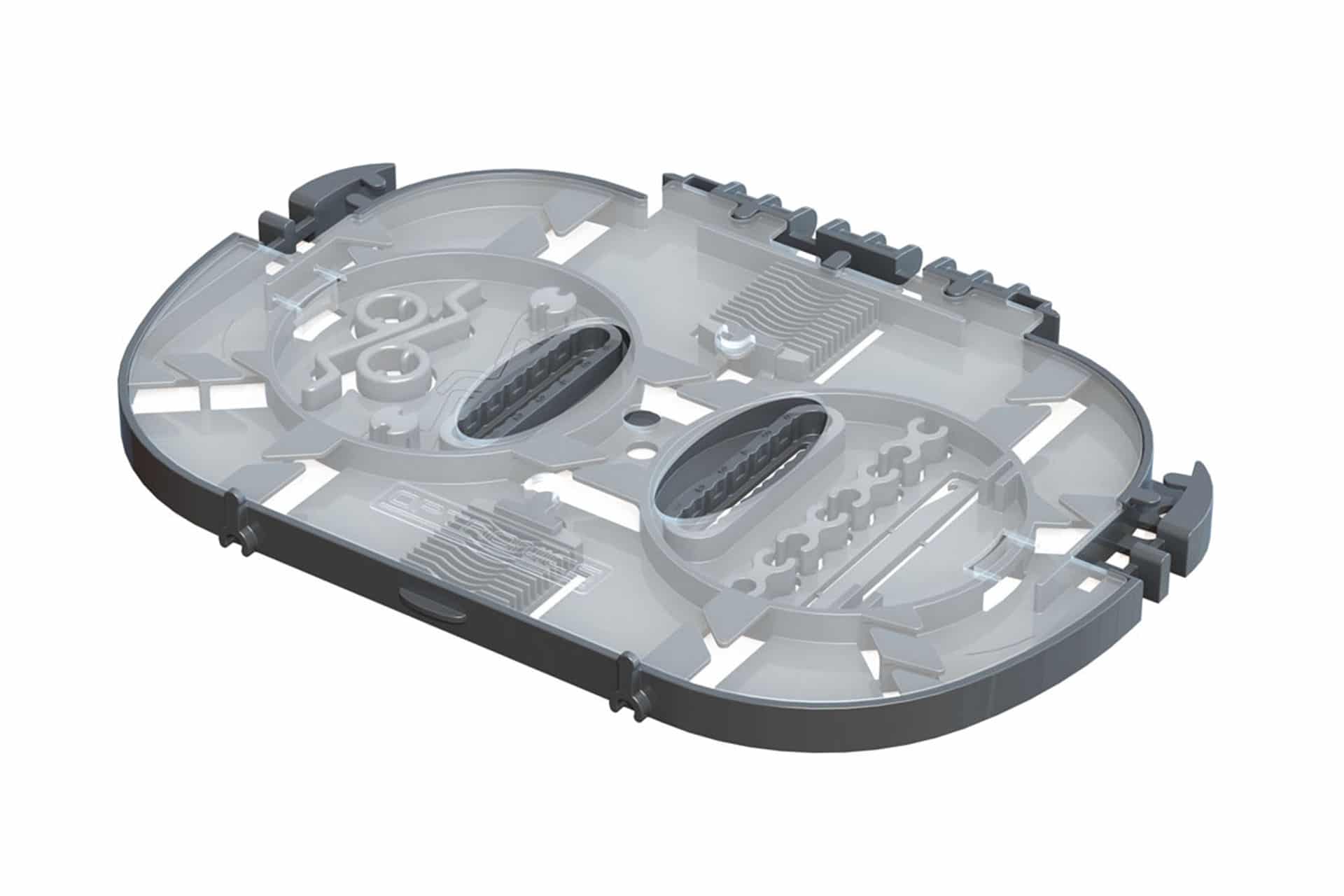

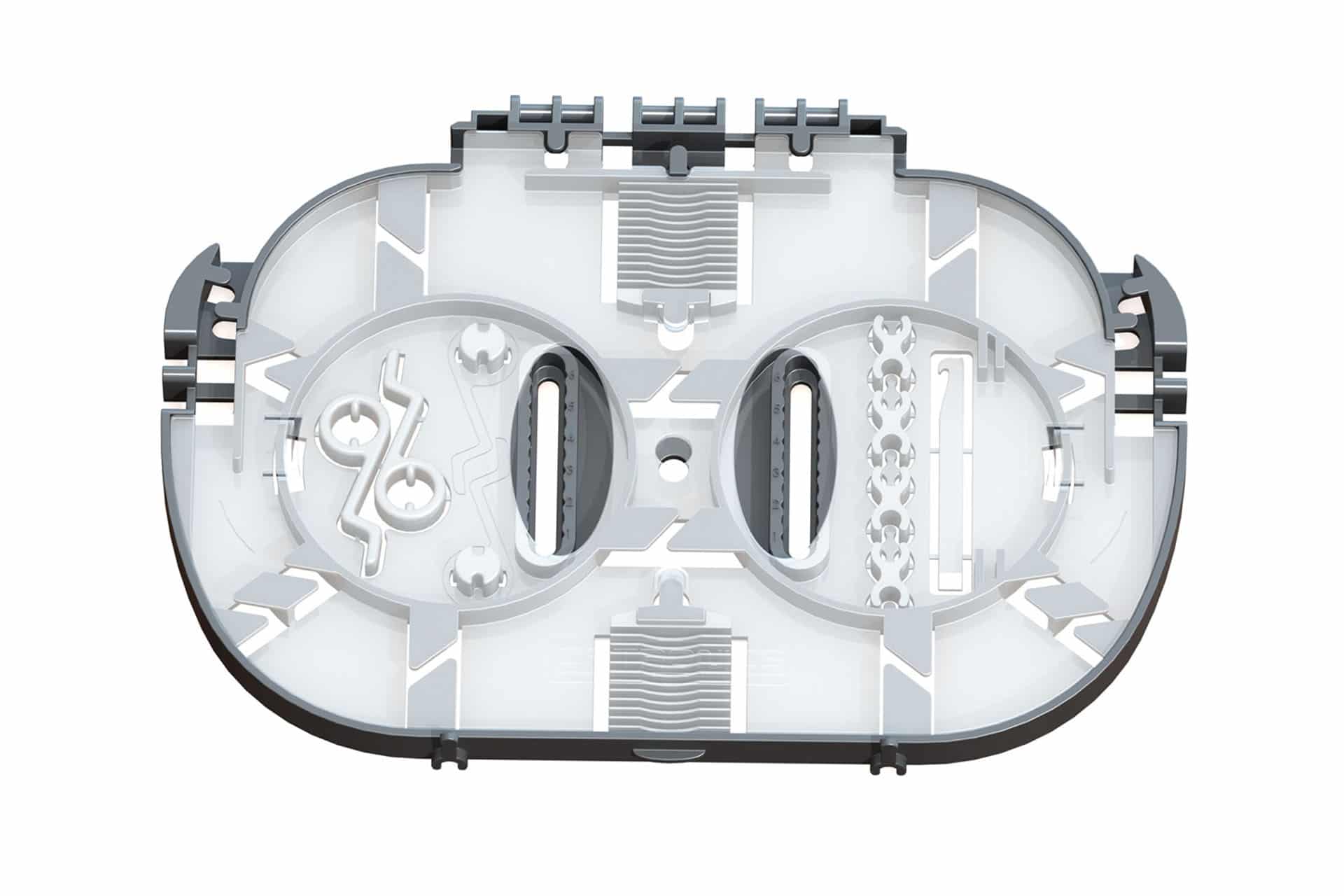

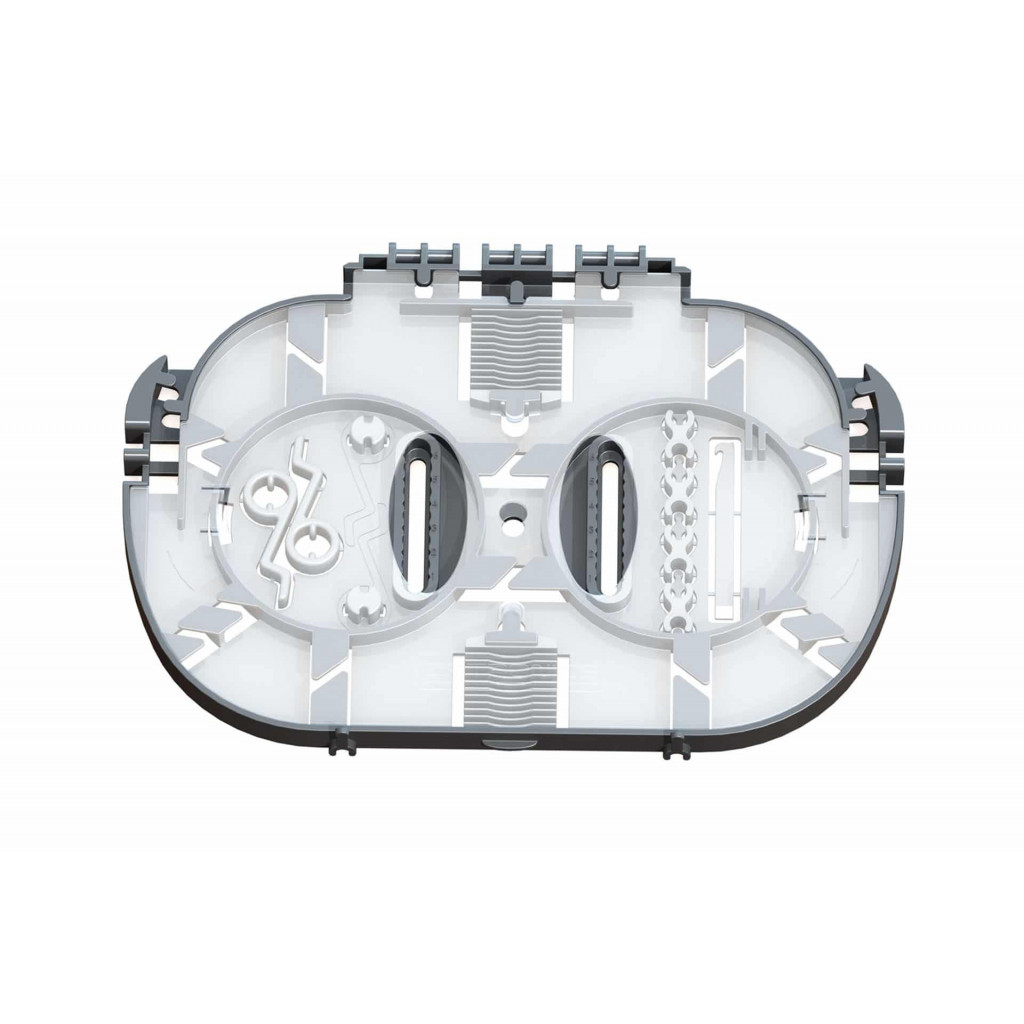

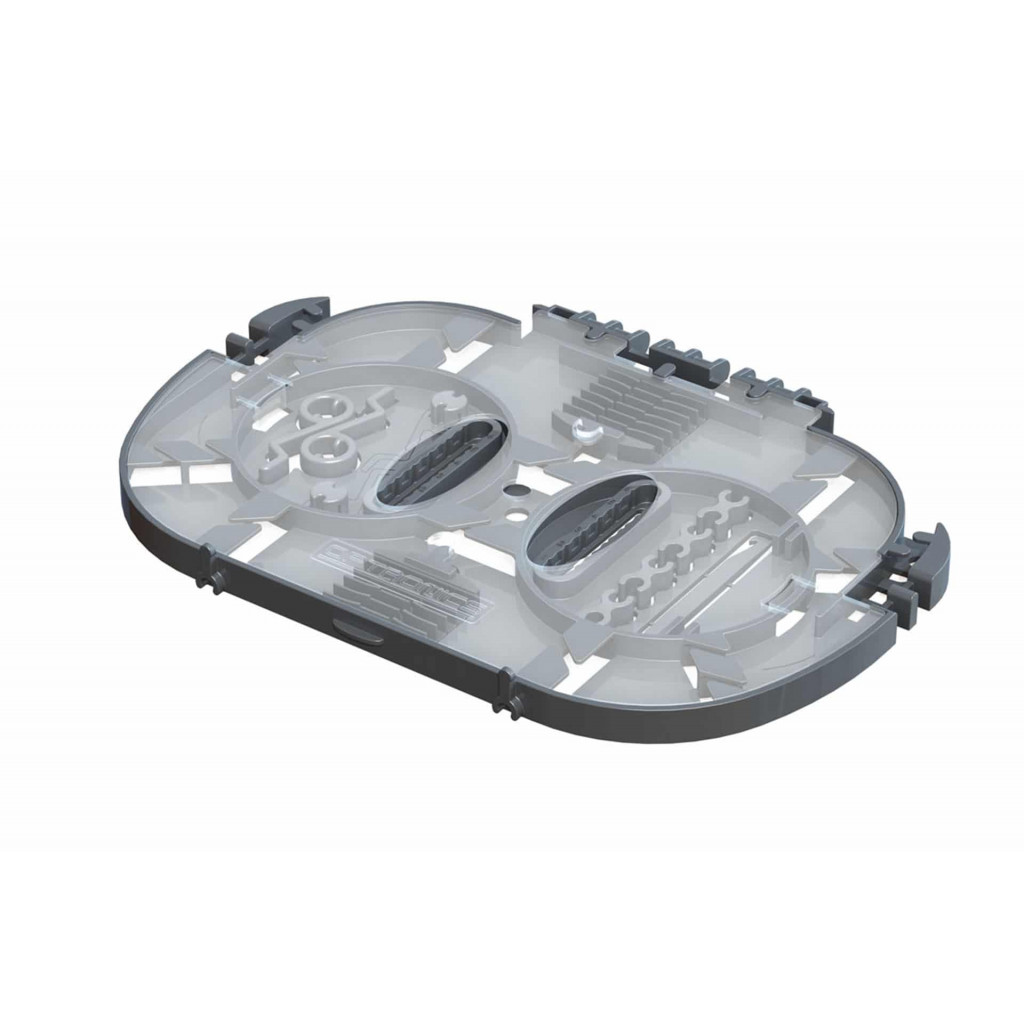

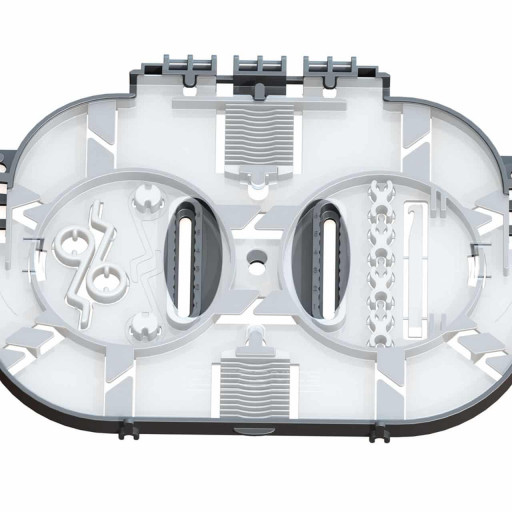

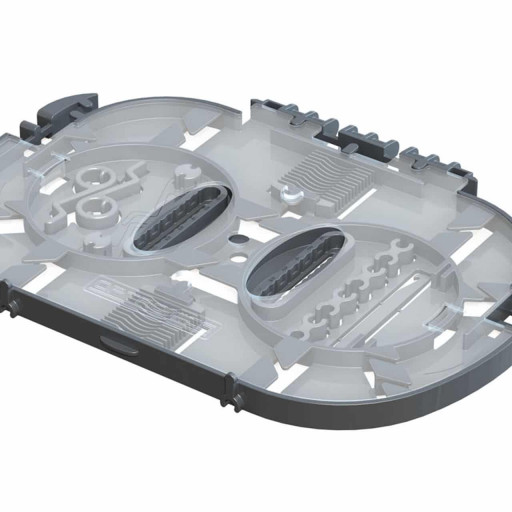

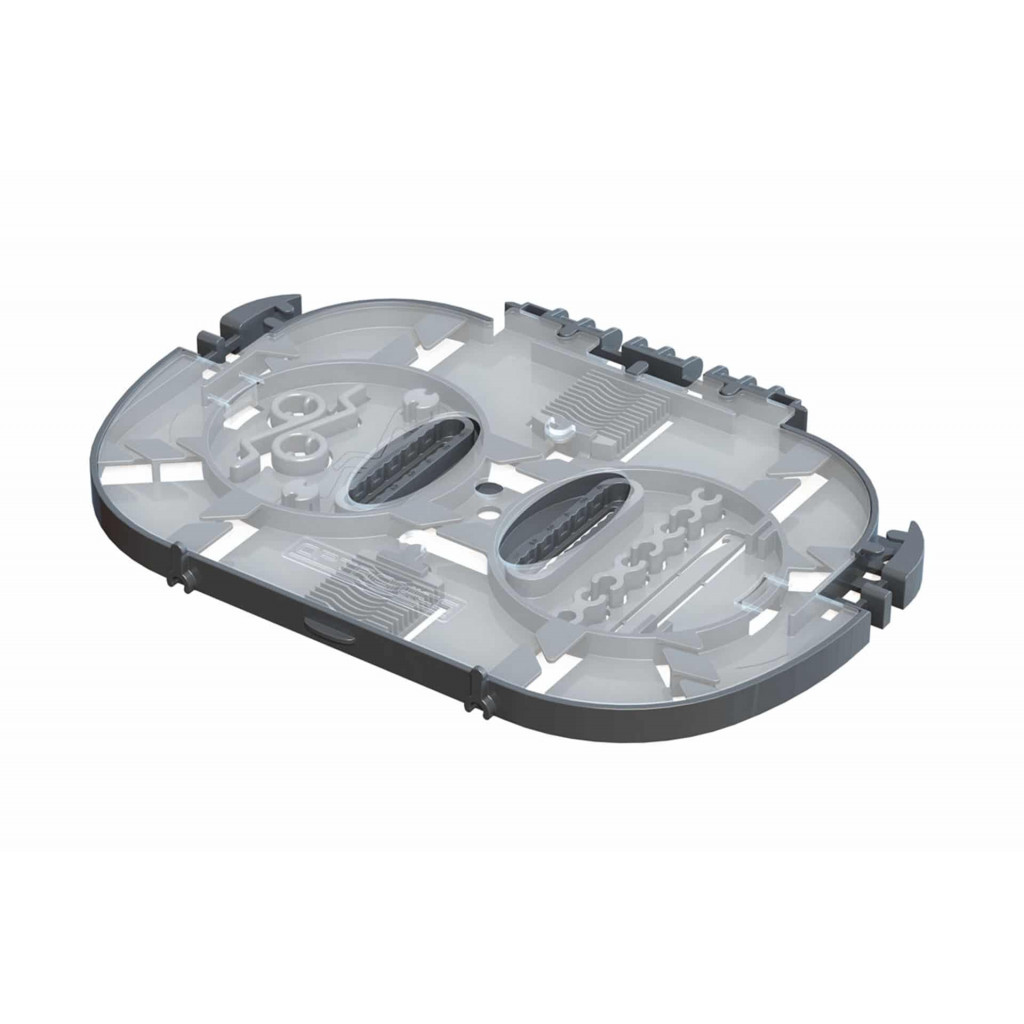

Splice tray slim line for 12 heat shrink splices, grey

SKU:SPT06

Categories: Fiber Accessories

Share this product

Product Overview

Introducing the revolutionary new splice tray with ease of use and flexibility.Featuring snap out hinge points, interchangeable splice holder, anti rotation points, fiber pick giving total fiber management and splicing control in one product.Due to its accommodating internal dimensions this splice tray is able to comfortably hold 12 heat shrink or 24 metal crimp style splice protectors and accepts 8 or 12 fiber sub units.( easy strip pigtails must be used with this tray)

Features

Spacious interior maintains 30mm fiber bend radius and allows storage of 250µm fiber
Internal management allows multiple fiber routing options including cross over
Snap in splice holders give the option to use heat shrink or Crimp type splice protectors
Built in fiber pick can be used to withdraw individual fibers and can be stored in the tray after use
Will hold up to 12 heat shrink splices or 24 crimp style splice protectors
( easy strip pigtails must be used with this tray)

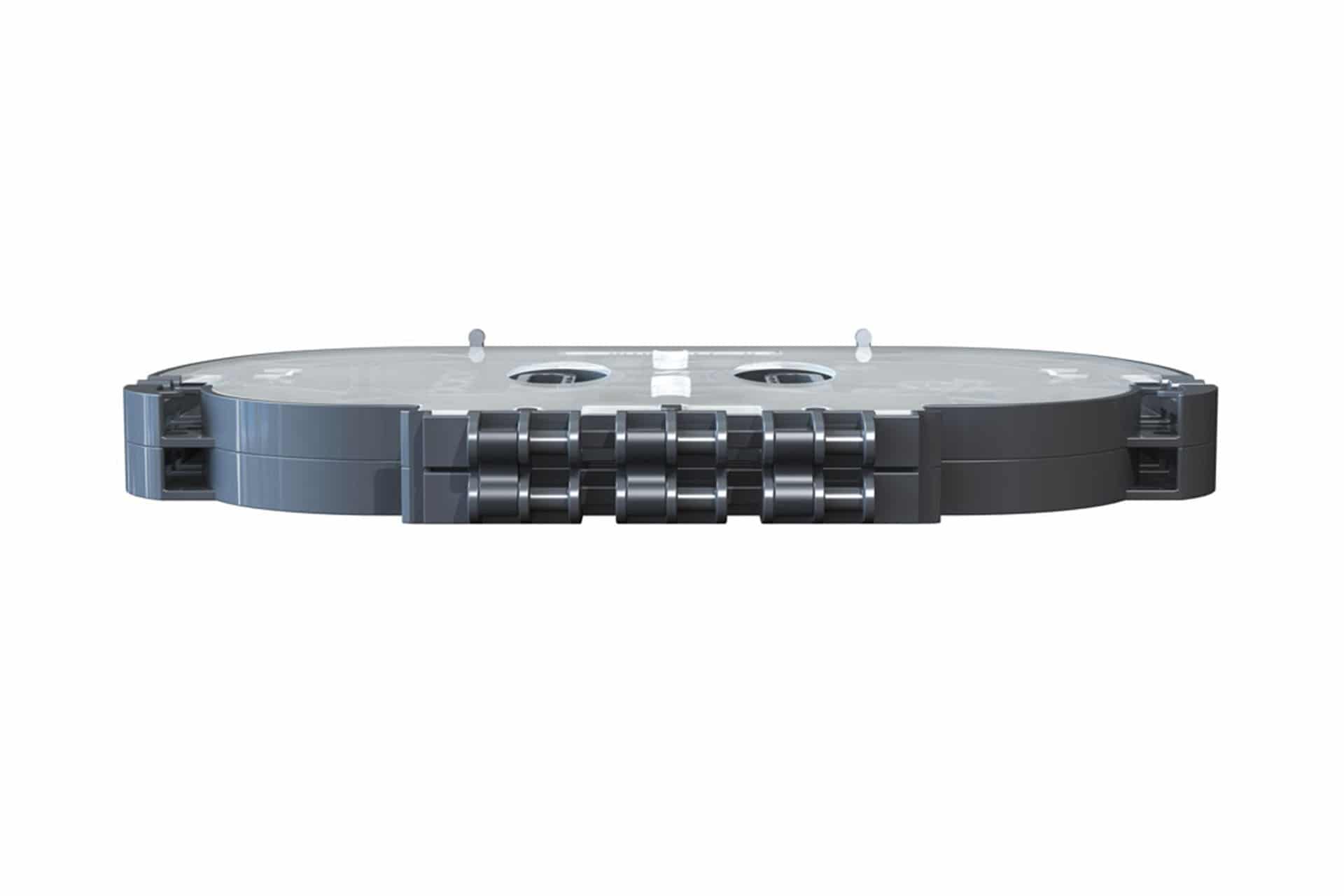

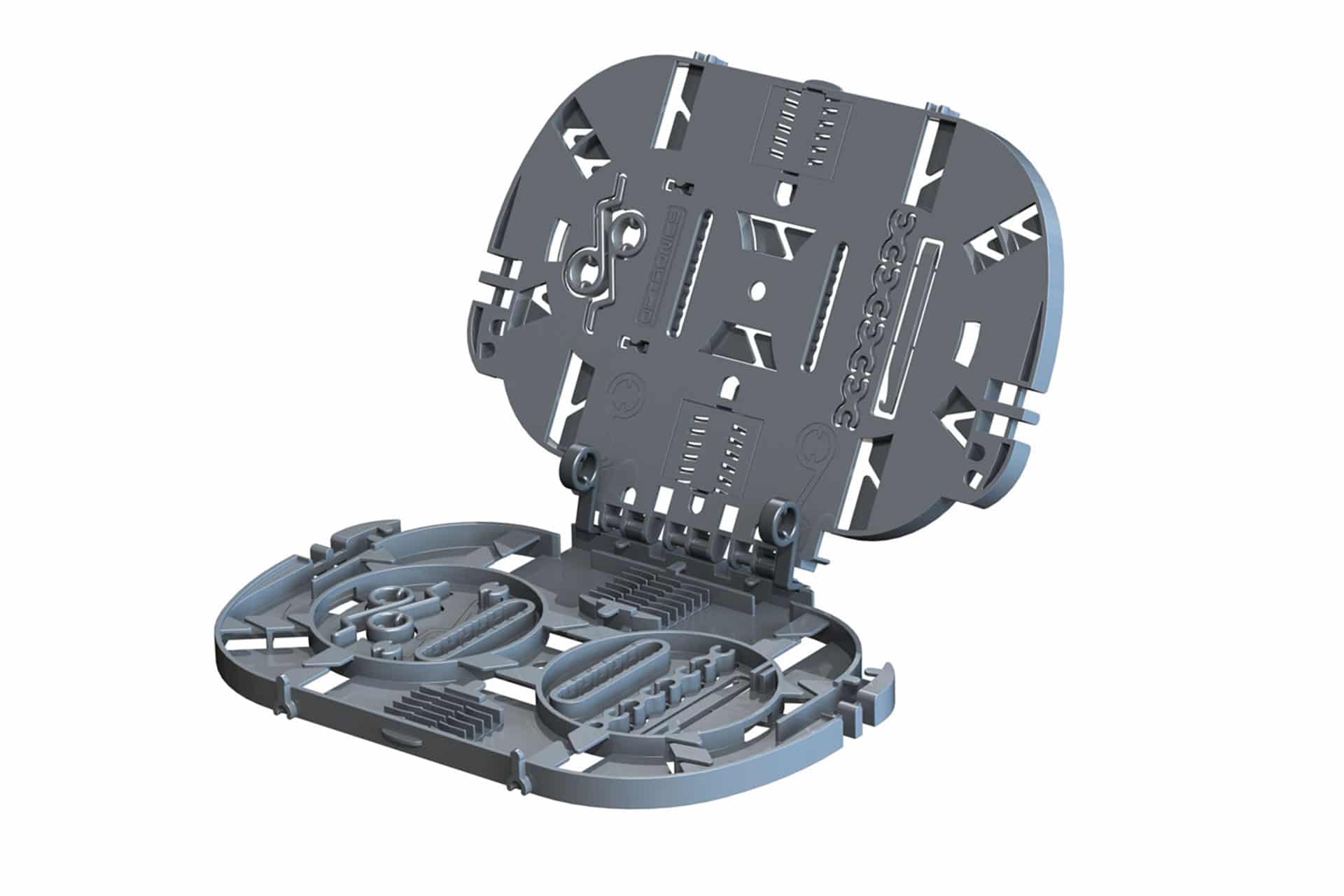

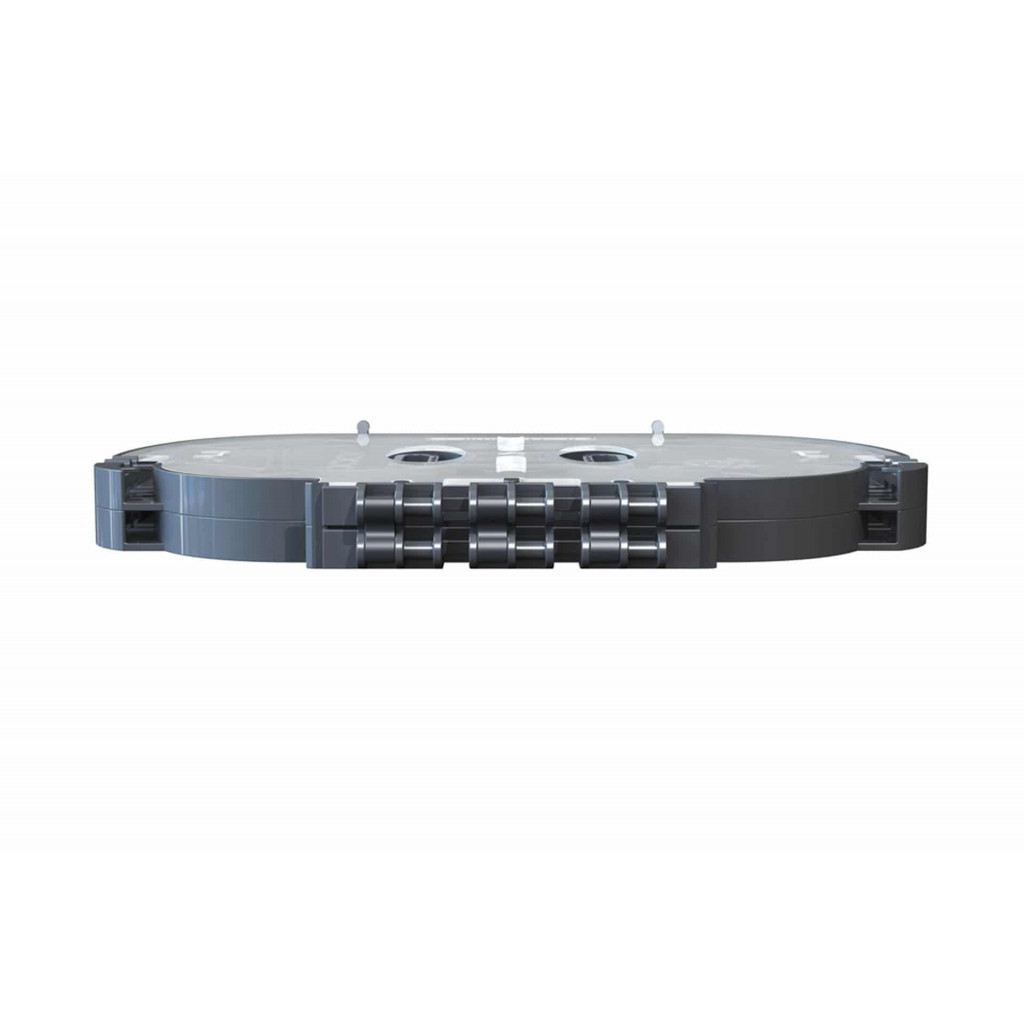

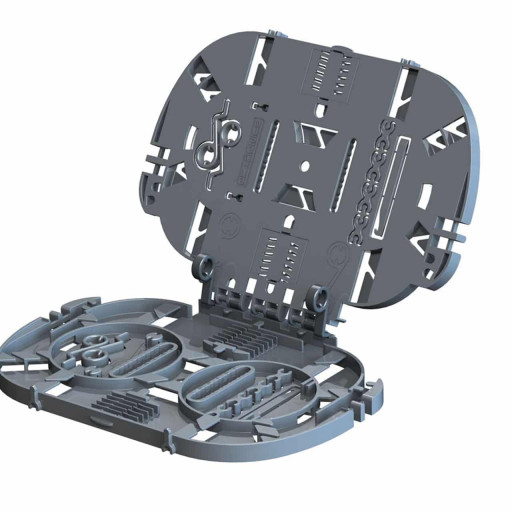

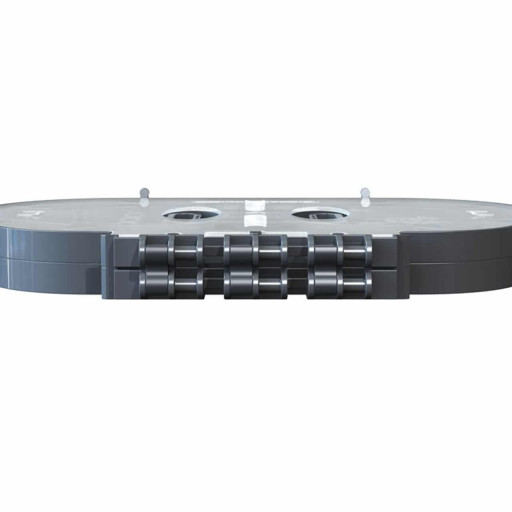

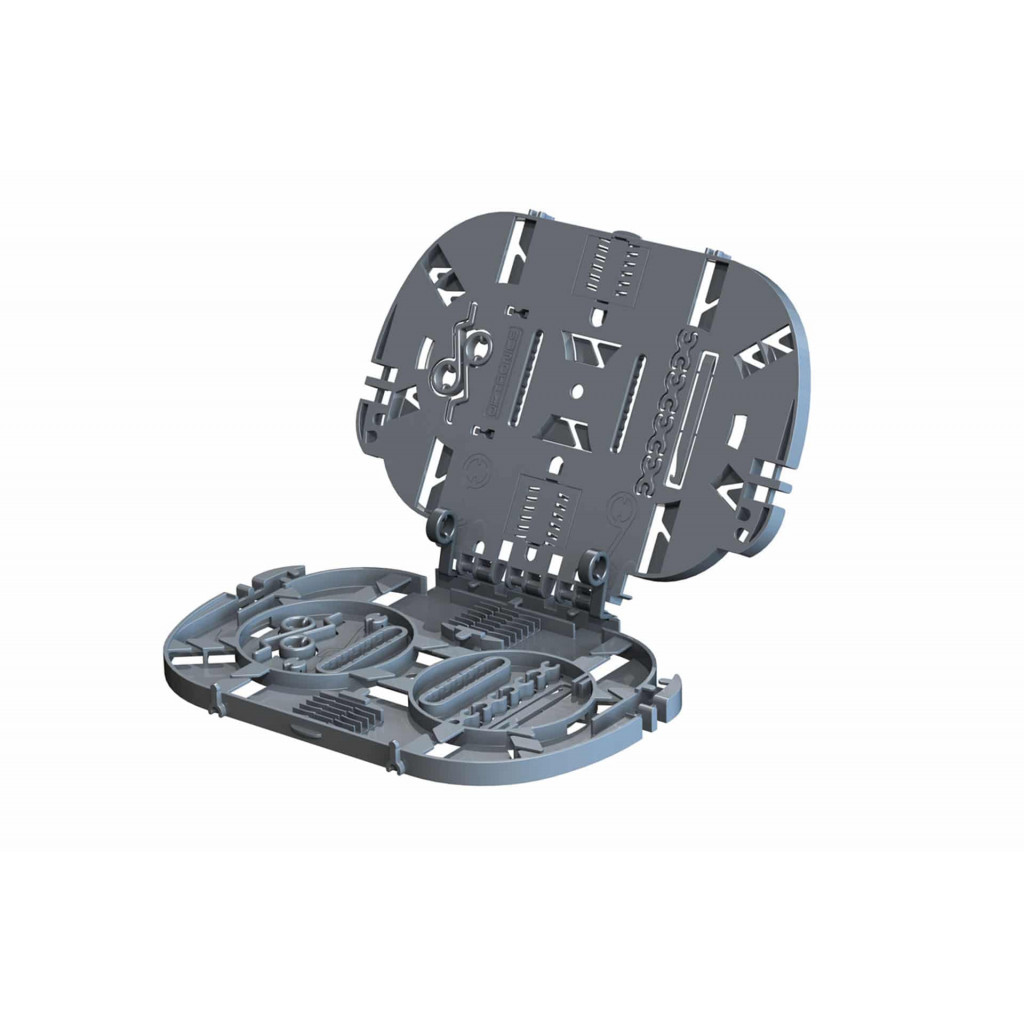

Supplied with tray hinge to maintain access to splices when stacked
Transparent lid supplied is fitted with an anti rotation clip
Cable tie points to secure fiber on entry and exit
Mountable via central hole, DIN style holes
Accepts 8 or 12 fiber sub units
