High-tech IT infrastructure solutions for
the OFFSHORE industry
Our solutions have been all around the world as well in the arctic areas. Besides Norway we have customers on all continents. The cost of recabling on a floating unit are enormous, so the products have to be the best we can manage in order to have the longest lifetime.
Besides our DNV approved Cat7/Cat6a/fiber optic solutions, we provide the whole range of cables from Draka Prysmian Group (e.g. QFCI, AICI, BFOU)
We can also offer these services:
- Design Maritime LAN – Using DNV approved solutions Sohome can design maritime LAN in every kind of vessel/rig. It includes drawings and cable pulling list for the installer
- Project Management – design of complete solutions including active equipment together with partners. Sohome can be the customers’ representative in purchasing products or deliver a complete package
- Documentation and installation – Sohome offers installation, testing and documentation of the network with its partners worldwide, onshore and offshore
- Hook-up Solution – outdoor quick connect fibre optic solution between rigs to easily share/extend the network
- Fibre optic products – Cables, connectors, pigtails, patchcords, patchpanels, outlets
High-tech solutions

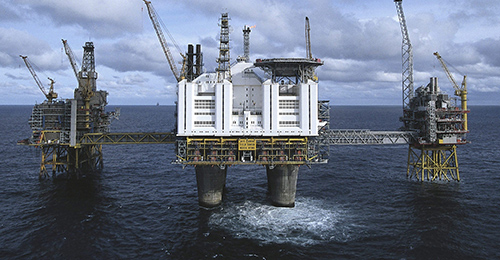

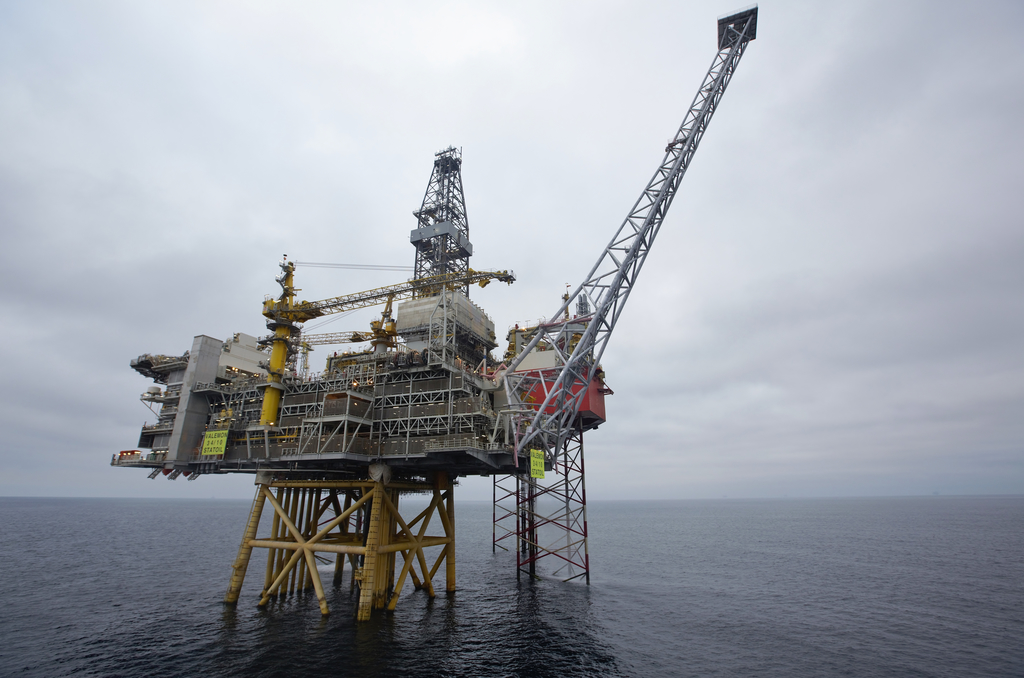

Oseberg field center
Products for the Offshore industry:
-

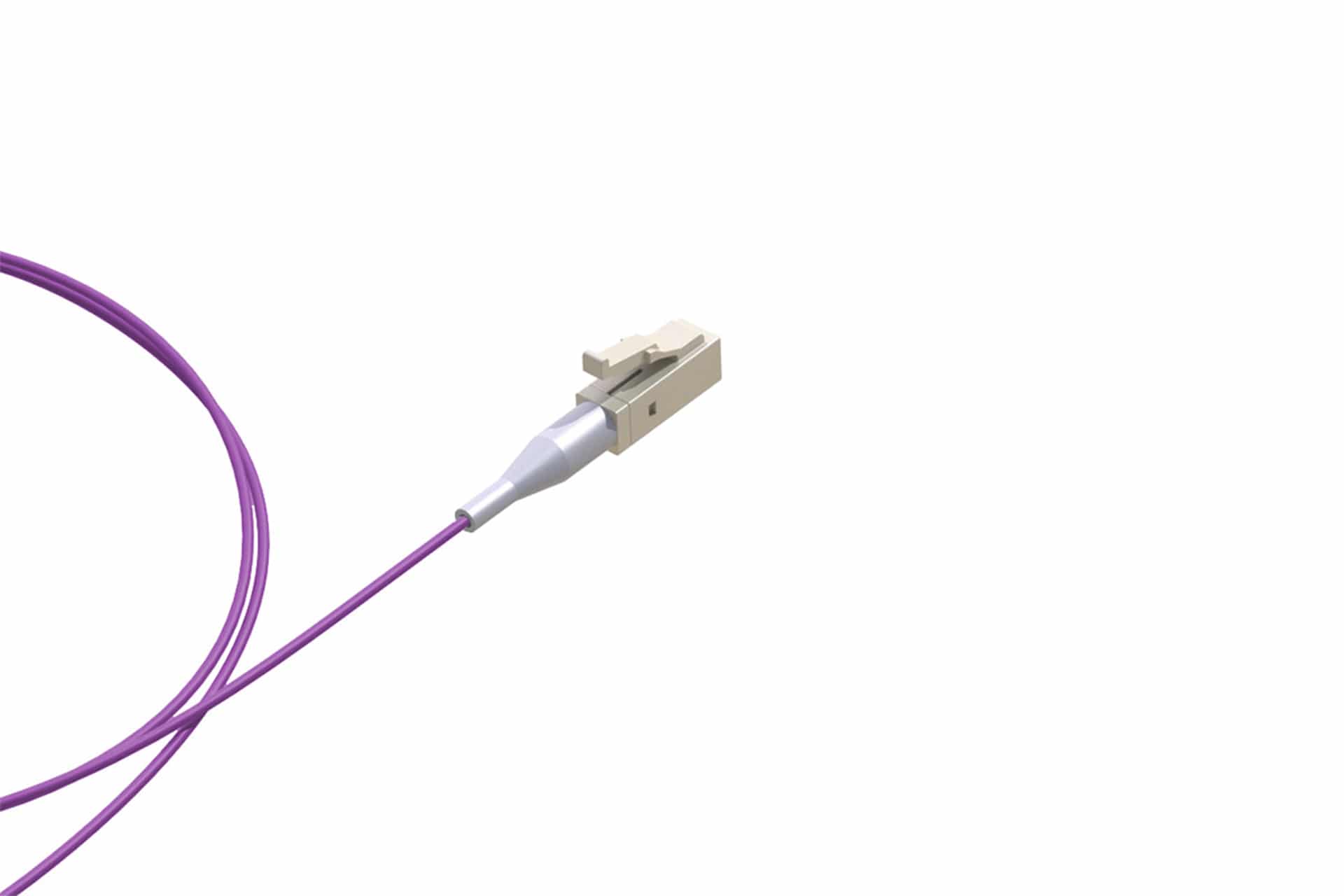

Pigtail Single Mode OS2
Single Mode OS2 pigtails
Part nr.:
-
Pigtail Multi Mode OM1
Multi Mode OM1 pigtails
Part nr.:
-

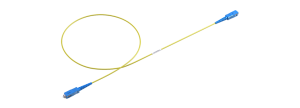

Patchcords Single Mode OS2
Single Mode 9/125 OS2 patchcords
Part nr.:
-

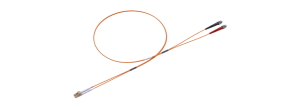

Patchcords Multi Mode OM1
Multi Mode 62.5/125 OM1 patchcords
Part nr.:
-
Patchcords Multi Mode OM2
Multi Mode 50/125 OM2 patchcords
Part nr.:
-
Patchcords Multi Mode OM3
Multi Mode 50/125 OM3 patchcords
Part nr.:
-
Patchcords Multi Mode OM4
Multi Mode 50/125 OM4 patchcords
Part nr.:
-
Patchcords, Armoured
Armoured fiber optic patchcords are used in customer premises, central offices and in indoor harsh environments.
Part nr.:
-

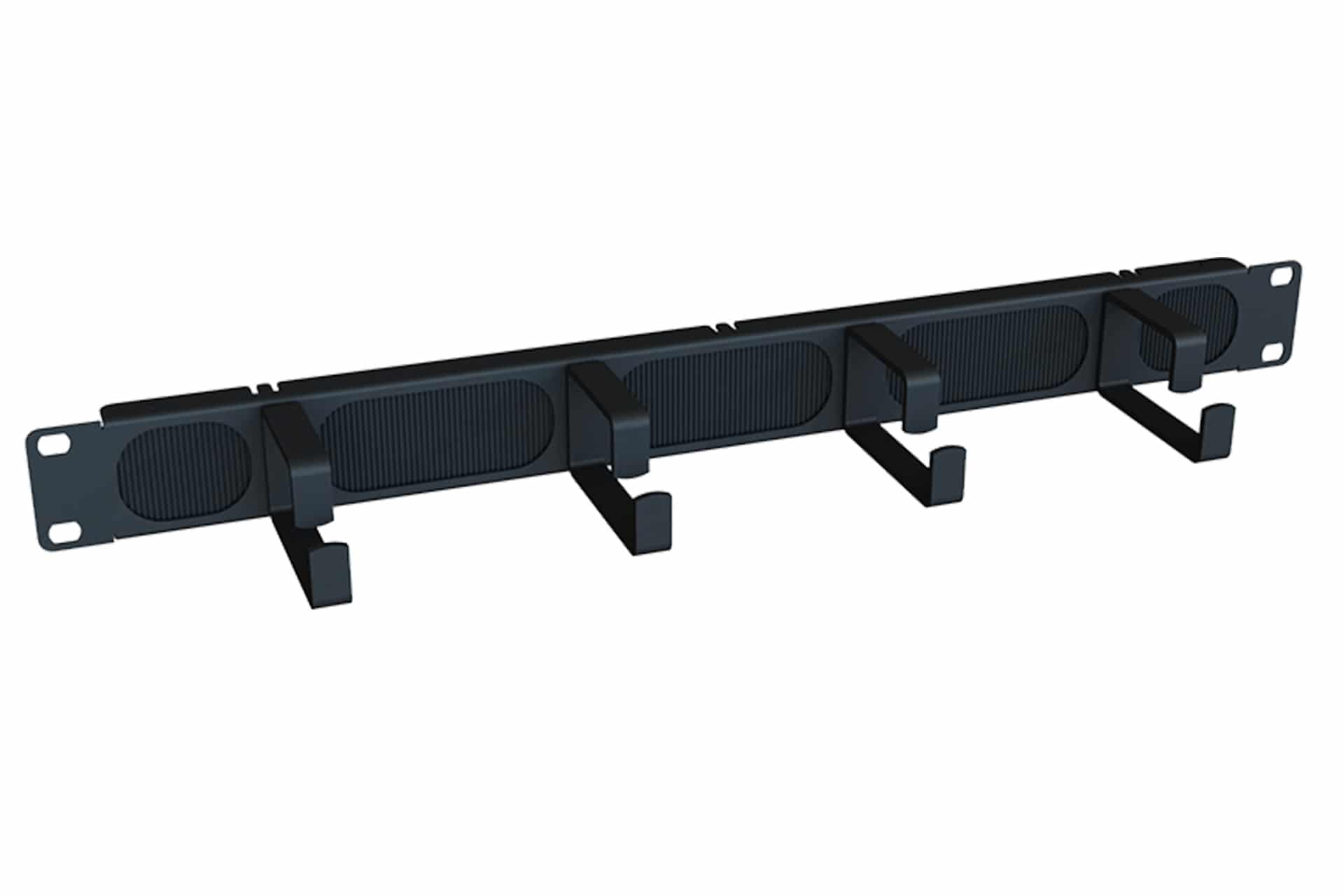

Patchguide 1HU Black with brush strip, 4 cable rings
This cable management bar provides an innovative solution for supporting cables. The 1U bar also includes a brush strip feature which provides access into the rear of the rack, having a brush instead of an open channel encourages the flow of air within the rack.
Part nr.: 1UCABLEBAR/BR
-

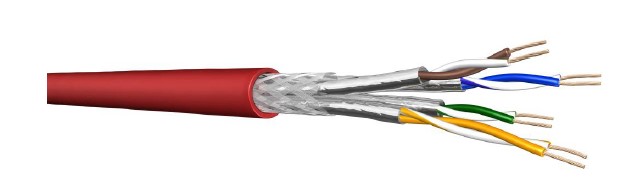

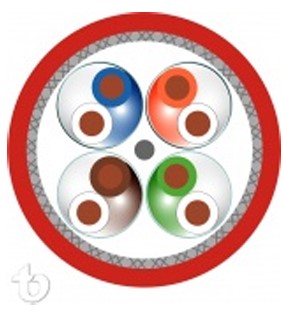

Draka UC900 Flex Cat7 S/FTP AWG26/7 PUR, Red
Cat7 S/FTP flexible patchcable with PUR sheath. Ideal for making patch cables or other use in work areas.
Part nr.: 60111463
-
Fire Resistant Cat7 S/FTP DNV approved LSZH-SHF2
Fire resistant Cat7 S/FTP cable for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units where transmission during fire is critical.
Part nr.: 9MGF009103
-
-
Bergen Cabling Maritime LAN Cat7 S/FTP DNV approved cable with SHF1 sheath
Cat7 DNV certified cable meant for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units. Also available on 2000m drums (Part number BC-10-001-2K)
Part nr.: BC-10-001
-
-
Bergen Cabling Maritime LAN hybrid cable Cat7+2SM fibres, SHF1 sheath
DNV GL certified hybrid cable with both Cat7 and 2x Bend Bright single mode fibers in one cable. For use in tougher electrical and mechanical environment, including ships and offshore units
Part nr.: BC-10-003
-
Bergen Cabling Maritime LAN hybrid cable Cat7+2SM fibres, SHF1 and MUD sheath
DNV GL certified hybrid cable with both Cat7 and 2x Bend Bright single mode fibers in one cable. The cable has an additional fire retardant, halogen-free low smoke MUD protected outer sheath.For use in tougher electrical and mechanical environment, including ships and offshore units
Part nr.: BC-10-004
-
Bergen Cabling Maritime LAN Cat7 cable with SHF1 and MUD sheath
Cat7 DNV certified cable meant for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units. The cable has an additional fire retardant, halogen-free low smoke MUD protected outer sheath
Part nr.: BC-10-005
-
-
Bergen Cabling Maritime LAN Cat6A S/FTP DNV approved cable with SHF1 sheath
Cat6A DNV certified cable meant for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units
Part nr.: BC-10-021
-
-
Bergen Cabling DNV approved Maritime LAN S/FTP Cat6A stranded cable
Cat6A S/FTP DNV approved cable meant for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units. Stranded version.
Part nr.: BC-10-025
-
-

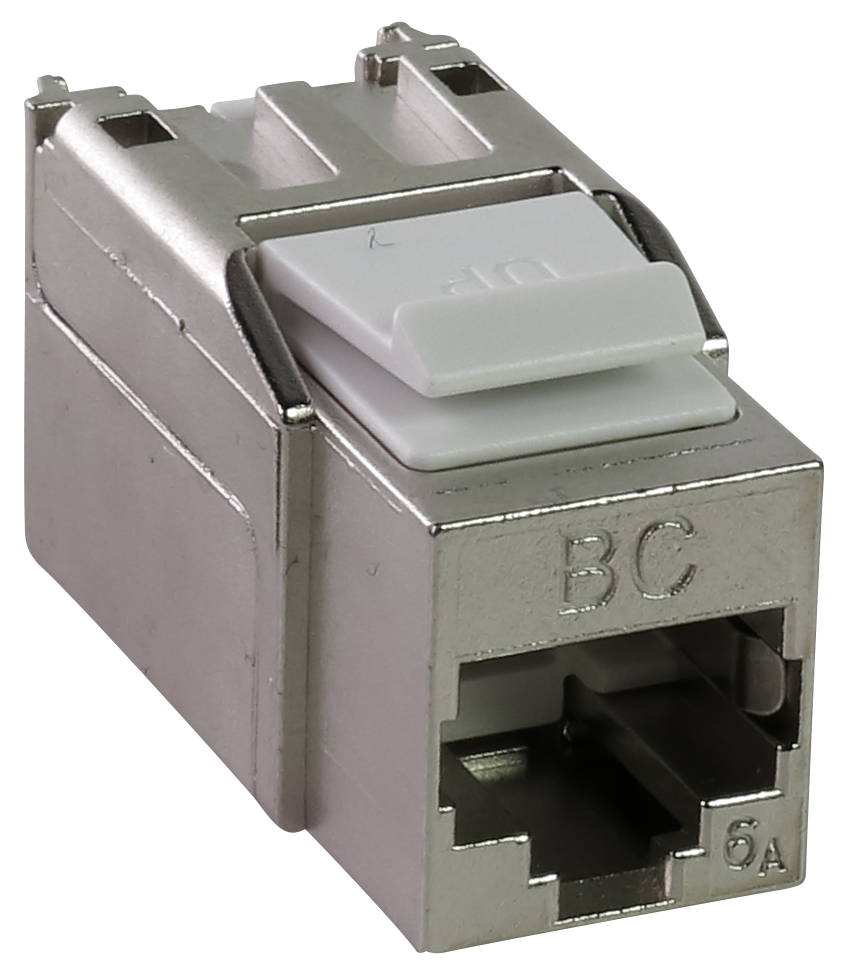

Bergen Cabling Maritime LAN Cat6A STP Connector, Keystone v2, DNV
Fully screened Cat6A connector RJ45 for communication up to 500 MHz, 100 Ω. The connector can be used with the Maritime LAN 24 port Patchpanel and outlets fits for the connector in a Cat6A installation, or keystone interface from other vendors. The connector is made for application up to 10 Gigabit Ethernet on solid wires, and shall be handled according to installation manual and together with the tool for the connector. This connector replaces the BC-11-004.
Part nr.: BC-11-006
-
-

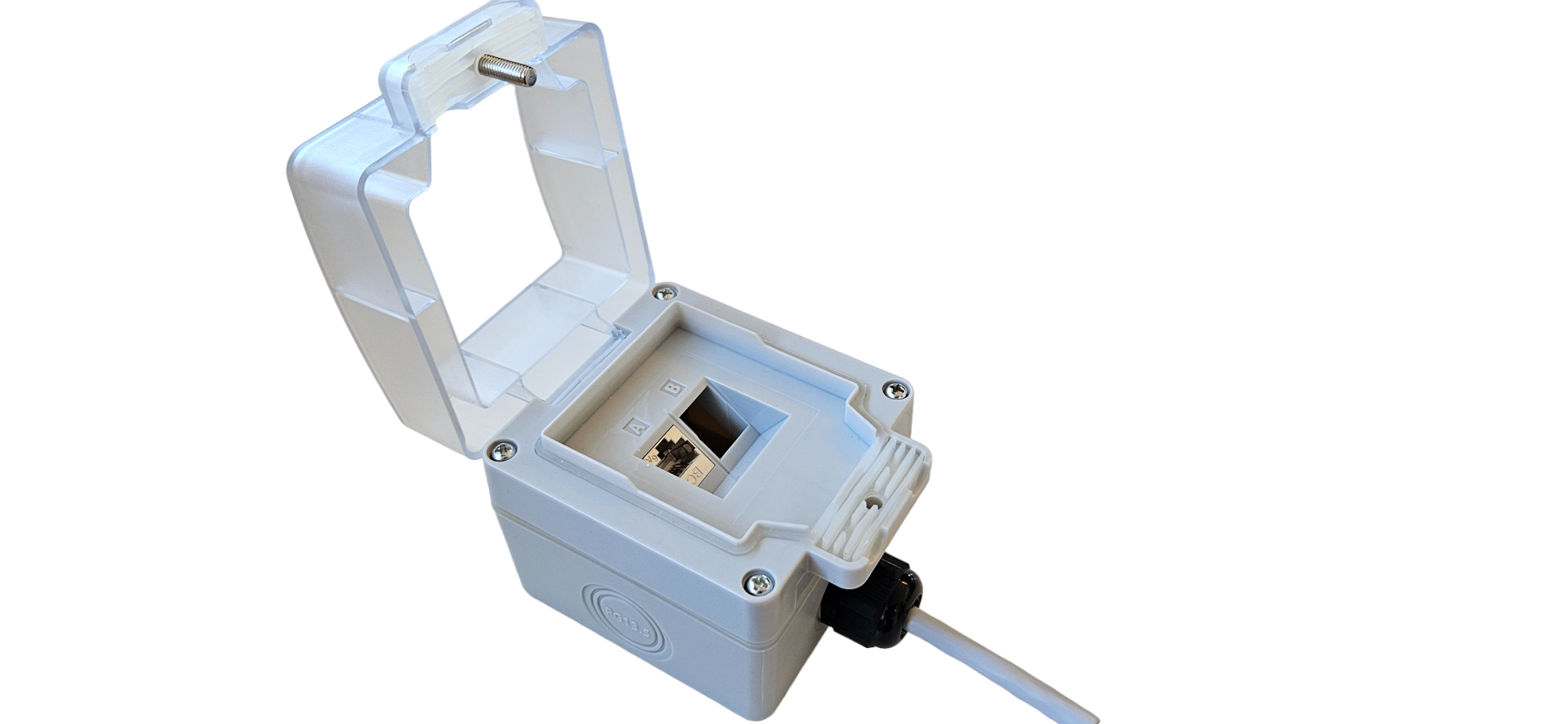

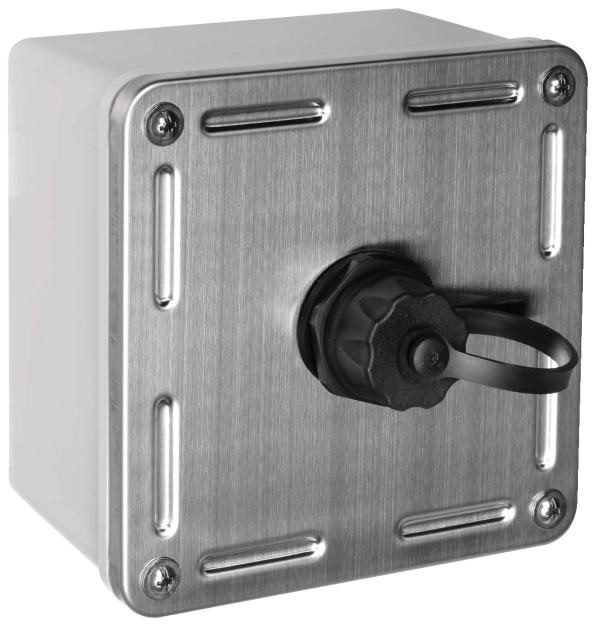

BC Maritime Outlet IP67 w/1x Cat6a
IP67 outlet for harsh environments. For use with our IP67/IP20 patchcords
Part nr.: BC-12-021
-

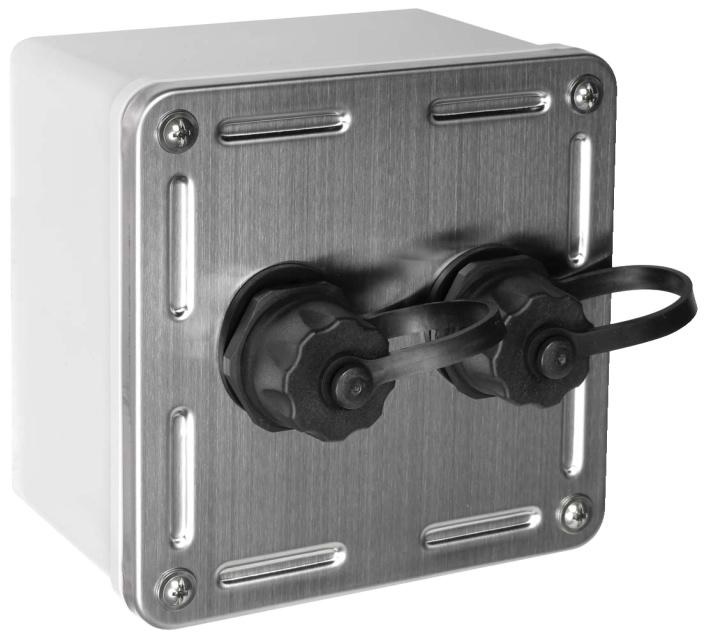

BC Maritime Outlet IP67 w/2xCat6a
IP67 outlet for harsh environments. For use with our IP67/IP20 patchcords
Part nr.: BC-12-024
-

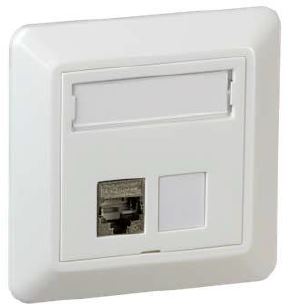

BC Outlet 1xJ45 STP Cat6A RS, Keystone
Flush mount outlet with 1xCat6a keystone connector and Elko RS16 frame.
Part nr.: BC-12-201
-
BC Outlet 2xJ45 STP Cat6A RS, Keystone
Flush mount outlet with 2xCat6a keystone connectors and Elko RS16 frame.
Part nr.: BC-12-202
-
BC Outlet 1xJ45 STP Cat6A RS Angled, Keystone
Angled outlet with 1xCat6a keystone connector and Elko RS16 frame. Center plate is mounted with screw to ensure that it is properly fastened. Especially for use in maritime environment
Part nr.: BC-12-203
-

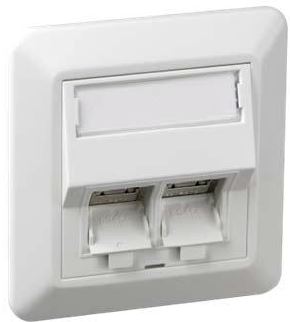

BC Outlet 2xJ45 STP Cat6A RS Angled, Keystone
Angled outlet with 2xCat6a keystone connector and Elko RS16 frame. Center plate is mounted with screw to ensure that it is properly fastened. Especially for use in maritime environment
Part nr.: BC-12-204
-
BC Outlet 1xJ45 STP Cat6A TEK, Keystone
TEK outlet with 1xCat6a keystone connector. Boxless type for use with TEK/INKA trunking
Part nr.: BC-12-207
-

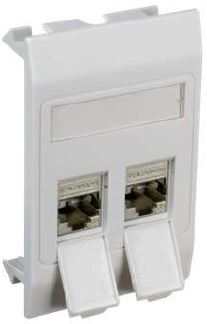

BC Outlet 2xJ45 STP Cat6A TEK, Keystone
TEK outlet with 2xCat6a keystone connectors. Boxless type for use with TEK/INKA trunking
Part nr.: BC-12-208
-

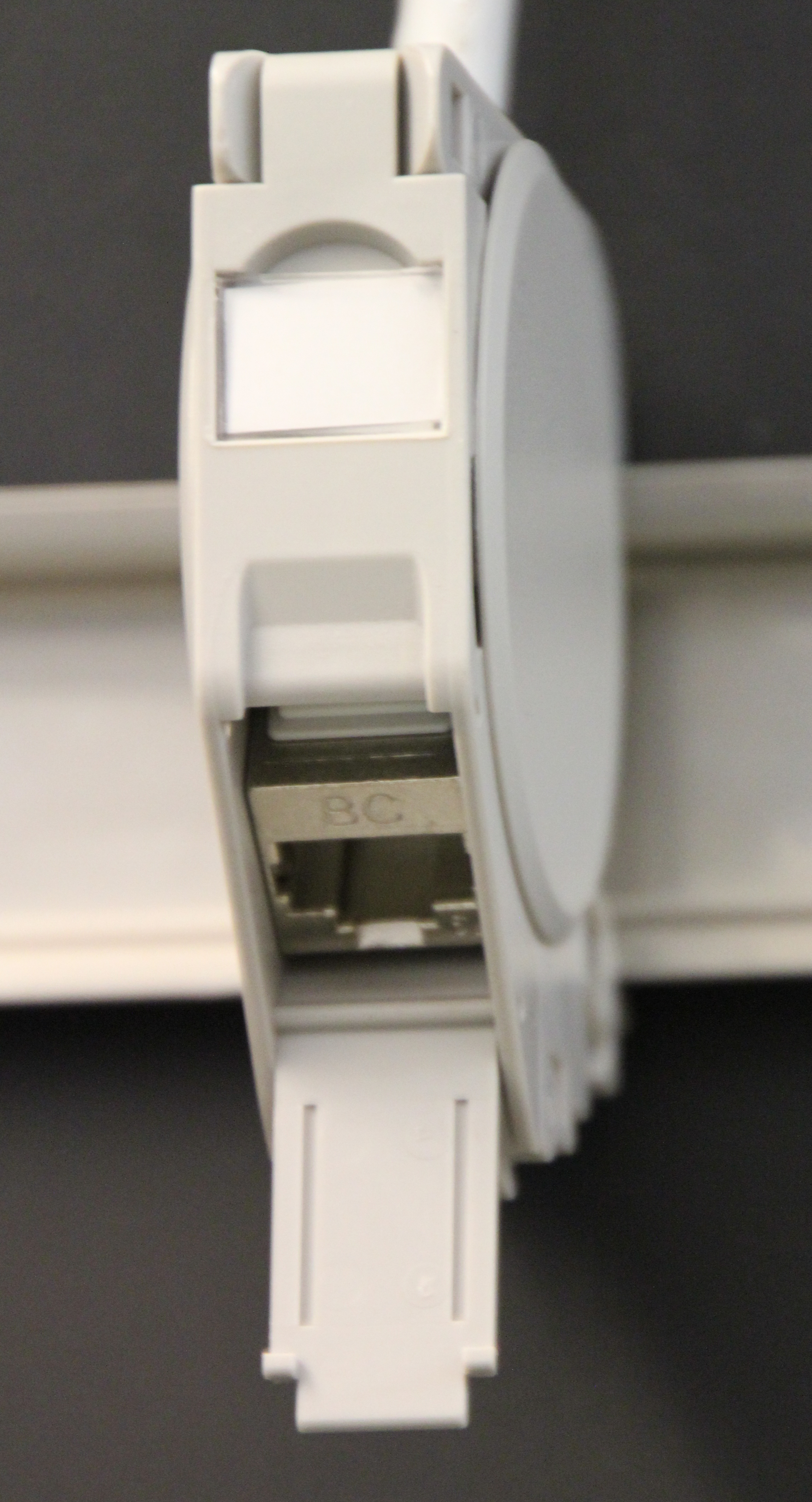

BC Outlet 1xSTP Cat6A DIN, Keystone
DIN mount outlet with 1xCat6a keystone DNV approved connector. Complete with dust cap and side cover
Part nr.: BC-12-212
-
BC Wall box IP66 for 2xCat6a STP keystone, empty
Part nr.: BC-12-221
-

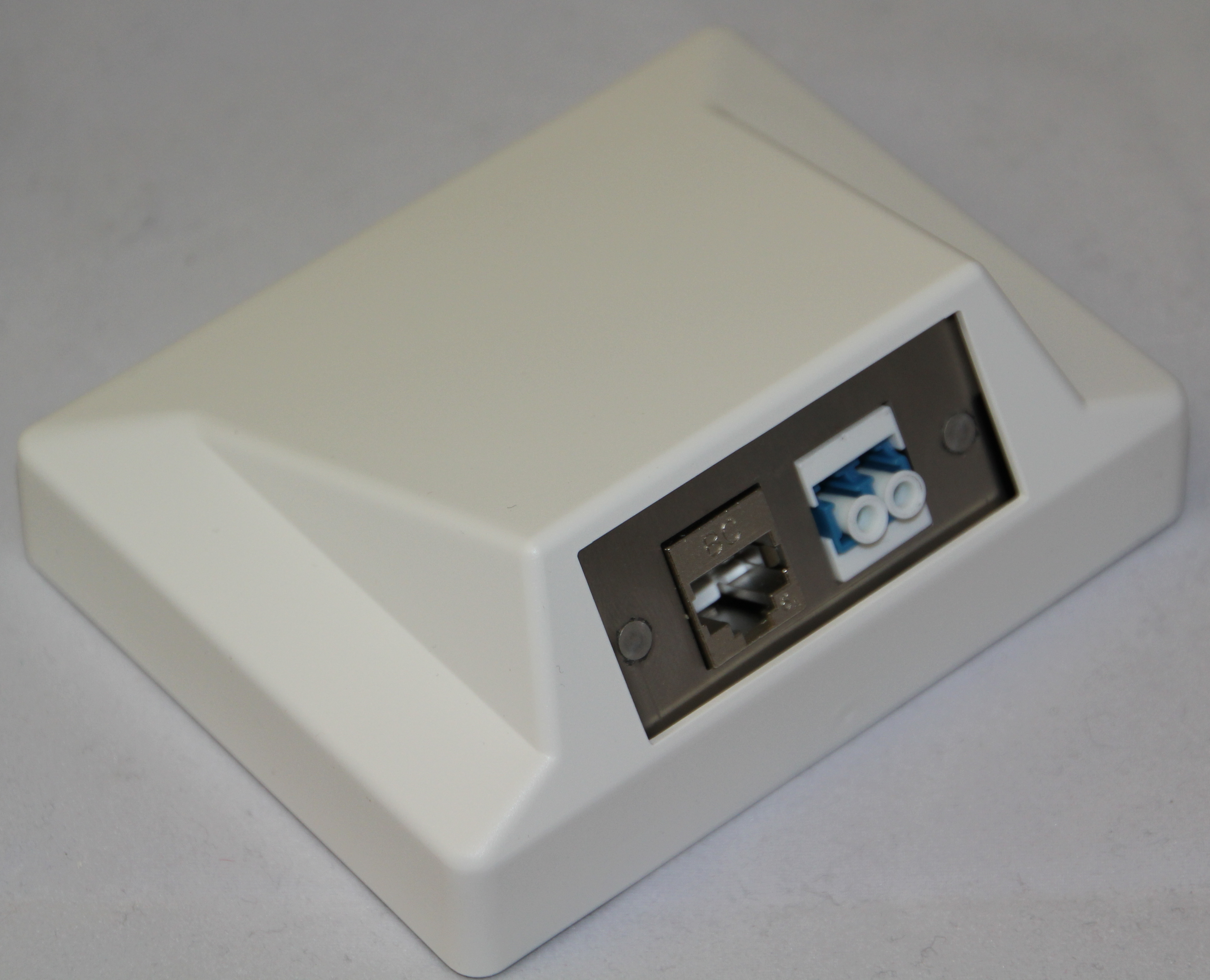

BC Outlet 1xRJ45 STP Cat6A + Duplex LC 9/125
Outlet for use with the hybrid cable. Comes with Cat6a connector and LC Duplex adapter.
Part nr.: BC-12-236
-

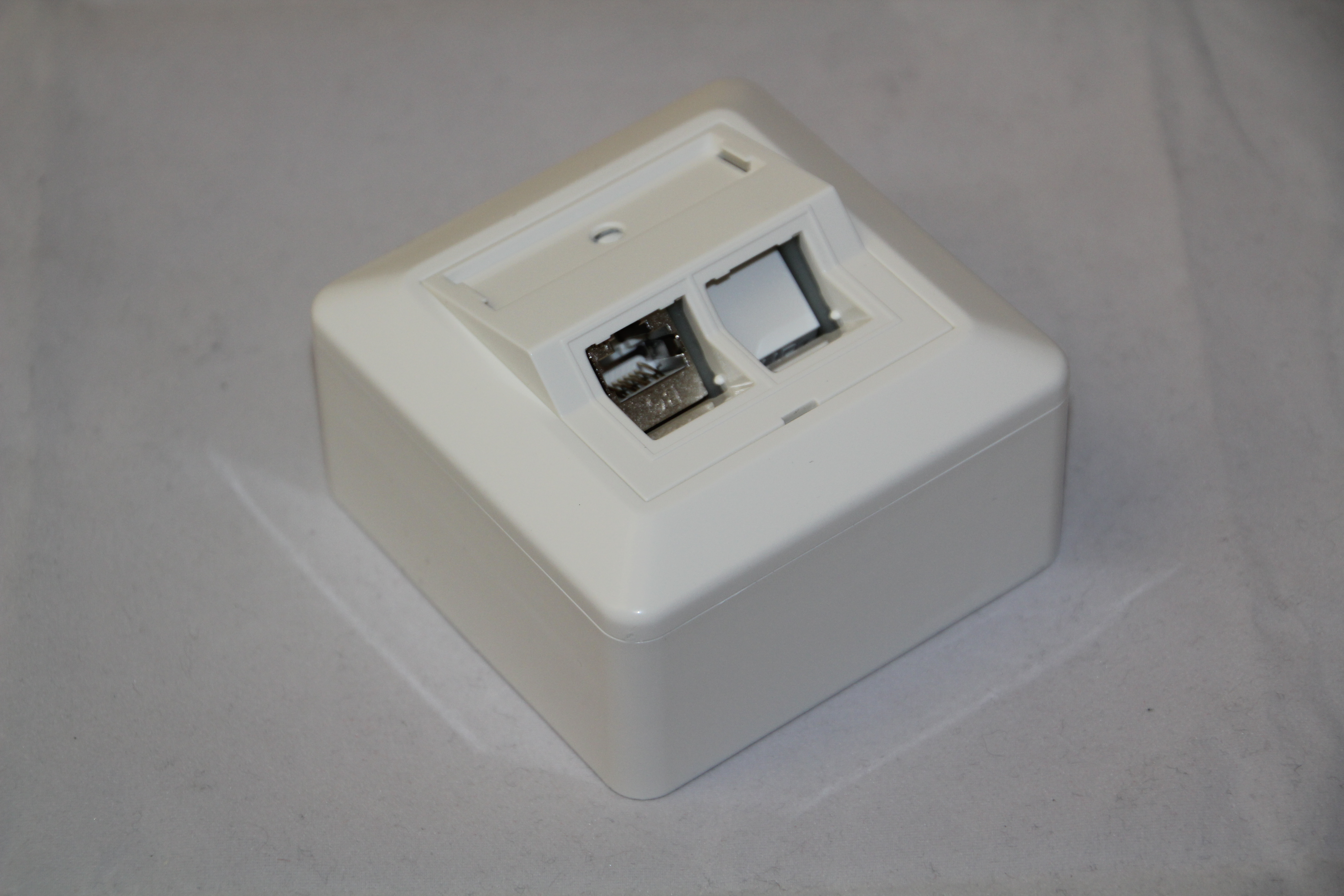

BC Outlet 1xRJ45 STP Cat6A RS Angled, Keystone w/wallbox
Angled outlet with 1xCat6a keystone connector, Elko RS16 frame and 33mm backbox. Center plate is mounted with screw to ensure that it is properly fastened. Especially for use in maritime environment
Part nr.: BC-12-253
-

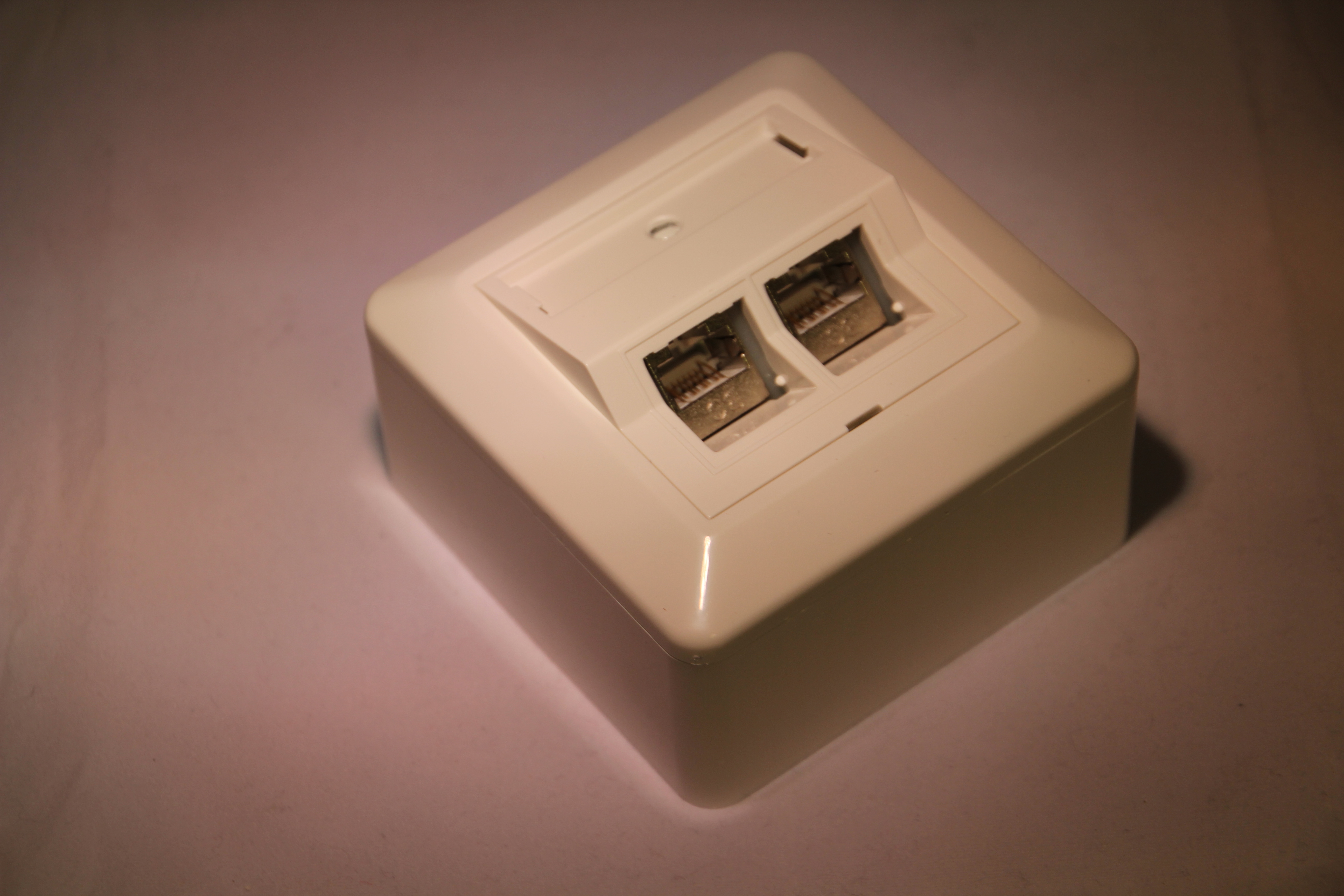

BC Outlet 2xRJ45 STP Cat6A RS Angled, Keystone w/wallbox
Angled outlet with 2xCat6a keystone connectors, Elko RS16 frame and 33mm backbox. Center plate is mounted with screw to ensure that it is properly fastened. Especially for use in maritime environment
Part nr.: BC-12-254
-

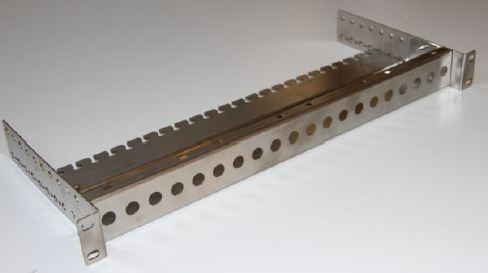

Patchpanel BNC 20p 75 ohm Bergen Cabling Maritime, empty
Heavy duty BNC solution for maritime and offshore installations. Suitable for BNC 75 ohm adapters with plastic rings for insulation (if needed)
Part nr.: BC-13-010
-

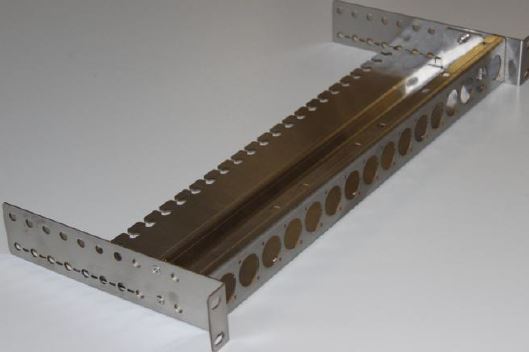

Patchpanel XLR 16p Bergen Cabling Maritime, empty
Heavy duty XLR solution for maritime and offshore installations. Suitable for XLR adapters and other adapters with same form factor.
Part nr.: BC-13-020
-

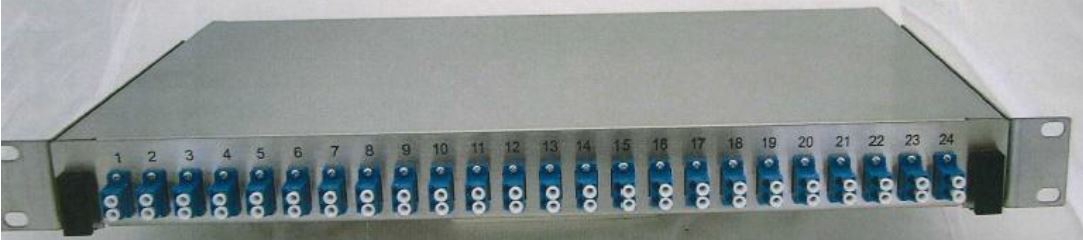

BC Patchpanel 1U 24p LC Duplex AISI 316L
Heavy duty fibre optic panel made of stainless steel. Loaded with LC SM duplex adapters
Part nr.: BC-13-071
-

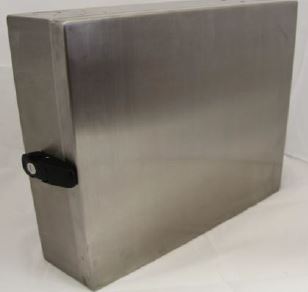

BC Wallbox Lockable LC SM for 36 DX adapters, SS316L, empty
Lockable wallbox made of acid free stainless steel. Suitable for up to 36 LC duplex or 36 SC simplex adapters.
Part nr.: BC-13-101
-

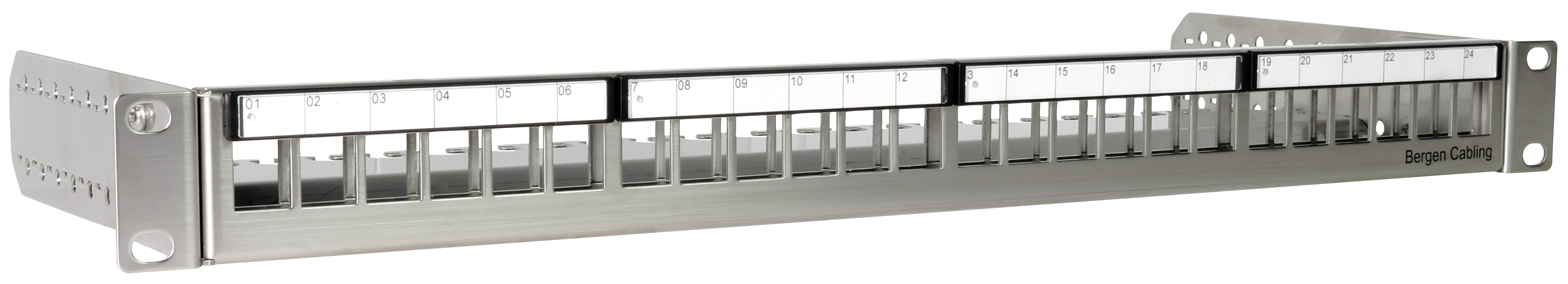

Bergen Cabling Maritime LAN patchpanel 24p, Keystone, empty
Heavy duty acid free stainless steel Maritime LAN patchpanel for BC Cat6a keystone connectors. Also suitable for other keystone adapters (e.g. LC, HDMI, USB etc).
Part nr.: BC-13-201
-

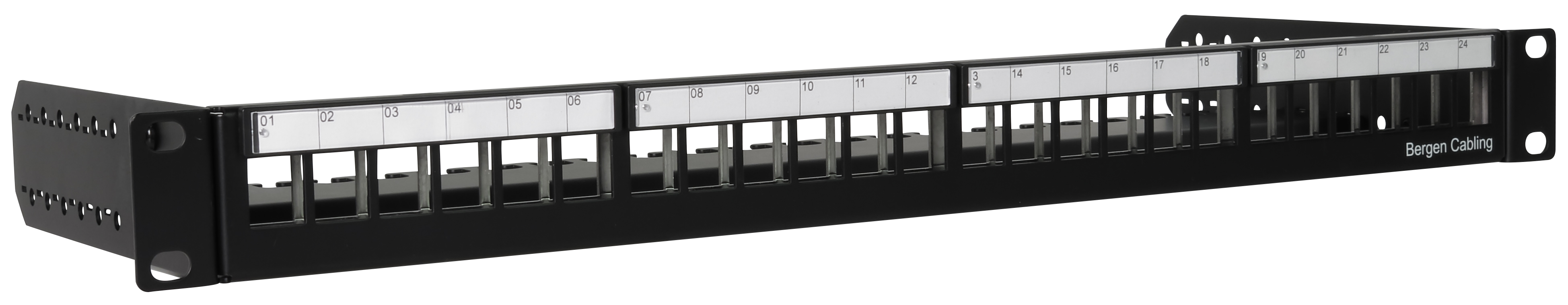

Bergen Cabling Maritime LAN patchpanel 24p black, Keystone, empty
Heavy duty stainless steel Maritime LAN black patchpanel for BC Cat6a keystone connectors. Also suitable for other keystone adapters (e.g. LC, HDMI, USB etc).
Part nr.: BC-13-203
-

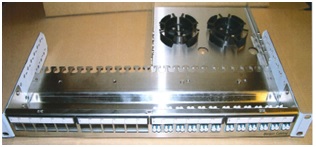

BC Hybrid panel Stainless steel 1U for fiber field termination
BC Hybrid panel 1U comes with 12xCat6a BC-11-004 connectors and 12xLC SM duplex adaptors. This version is for field termination with Unicam connectors as an option.
Part nr.: BC-13-205
-
BC Hybrid panel Stainless steel 2U for fiber field termination
BC Hybrid panel 2U comes with 24xCat6a BC-11-004 connectors and 24xLC SM duplex adaptors. This version is for field termination with Unicam connectors as an option.
Part nr.: BC-13-206
-
BC Hybrid panel Stainless steel 2 HU, empty
BC Hybrid panel 1U comes with 12xCat6a BC-11-004 connectors and 12xLC SM duplex adaptors. This version is for fusion splicing with LC SM pigtails as an option.
Part nr.: BC-13-207
-

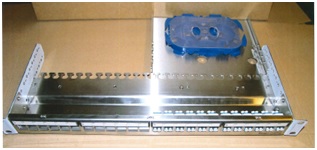

BC Hybrid panel Stainless steel 2 HU, fully equipped
BC Hybrid panel 2U comes with 24xCat6a BC-11-004 connectors and 24xLC SM duplex adaptors. his version is for fusion splicing with LC SM pigtails as an option.
Part nr.: BC-13-208
-

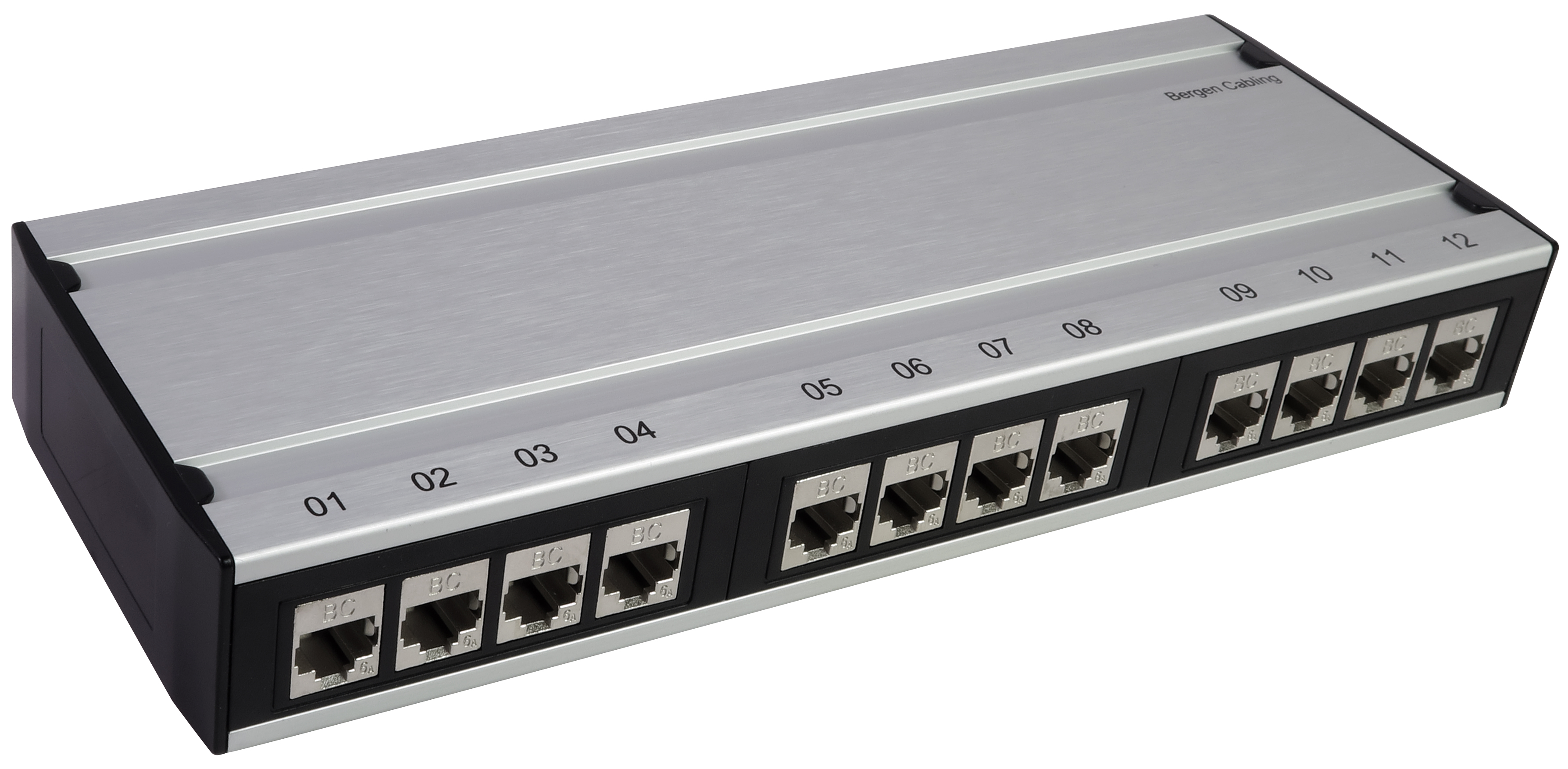

BC Alu patchboks 4-12 port w/Cat6A Keystone
Patchbox in aluminium for use on e.g. shelfs, wall etc. 4, 8 and 12 ports available. Comes complete with BC Cat6a keystone connectors
Part nr.: BC-13-234-7
-
Bergen Cabling Keystone Termination Tool
Termination tool for BC Cat6a keystone connectors
Part nr.: BC-14-201
-

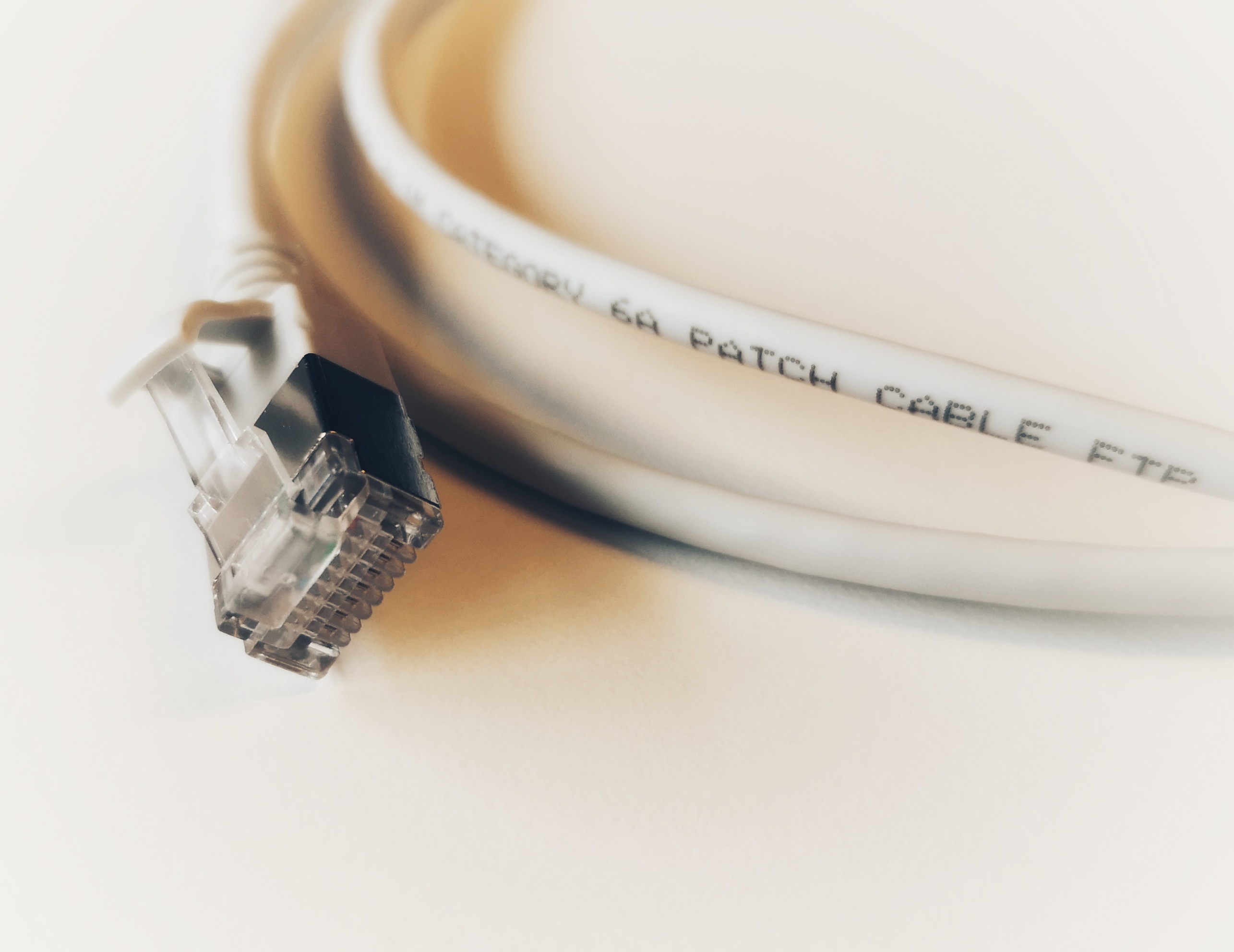

BC Slim Patchcord Cat6A FTP LSOH
BC Slim Patchcords Cat6A FTP. low smoke halogen free. Standard lengths 0.2m to 20m. Standard colour is grey, but other colours may be available on request.
Part nr.: BC-16-1xx
-
BC Patchcord Cat6A S/FTP LSOH-FR Grey
BC Patchcords Cat6a S/FTP grey. Low smoke halogen free and flame retardant. Standard lengths 0.2m to 20m. Also available in some lengths of blue and red
Part nr.: BC-16-xxx
-
BC Maritime Patchcord IP67/IP20 Cat6a
BC Maritime Patchcords IP67 Cat6a IP67 and IP20. For use with BC-12-021/024. May be used with outdoor APs and CCTV.
Part nr.: BC-17-xxx
-

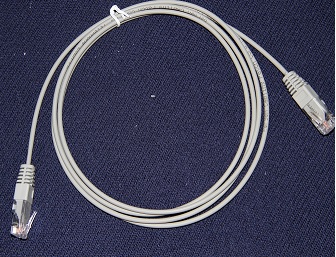

BC Voice cord 1 pair RJ45-RJ45/IDC solid core LSOH-FR
BC Voice cords with either RJ45-RJ45 or RJ45-IDC. Low smoke halogen free and flame retardant. For use with digital PABX system.
Part nr.: BC-20-xxx
-
BC Patchcord Cat6 FTP Waterproof
BC Waterproof Patchcords Cat6 FTP black. Lengths from 5m-25m.
Part nr.: BC-21-xxx
-

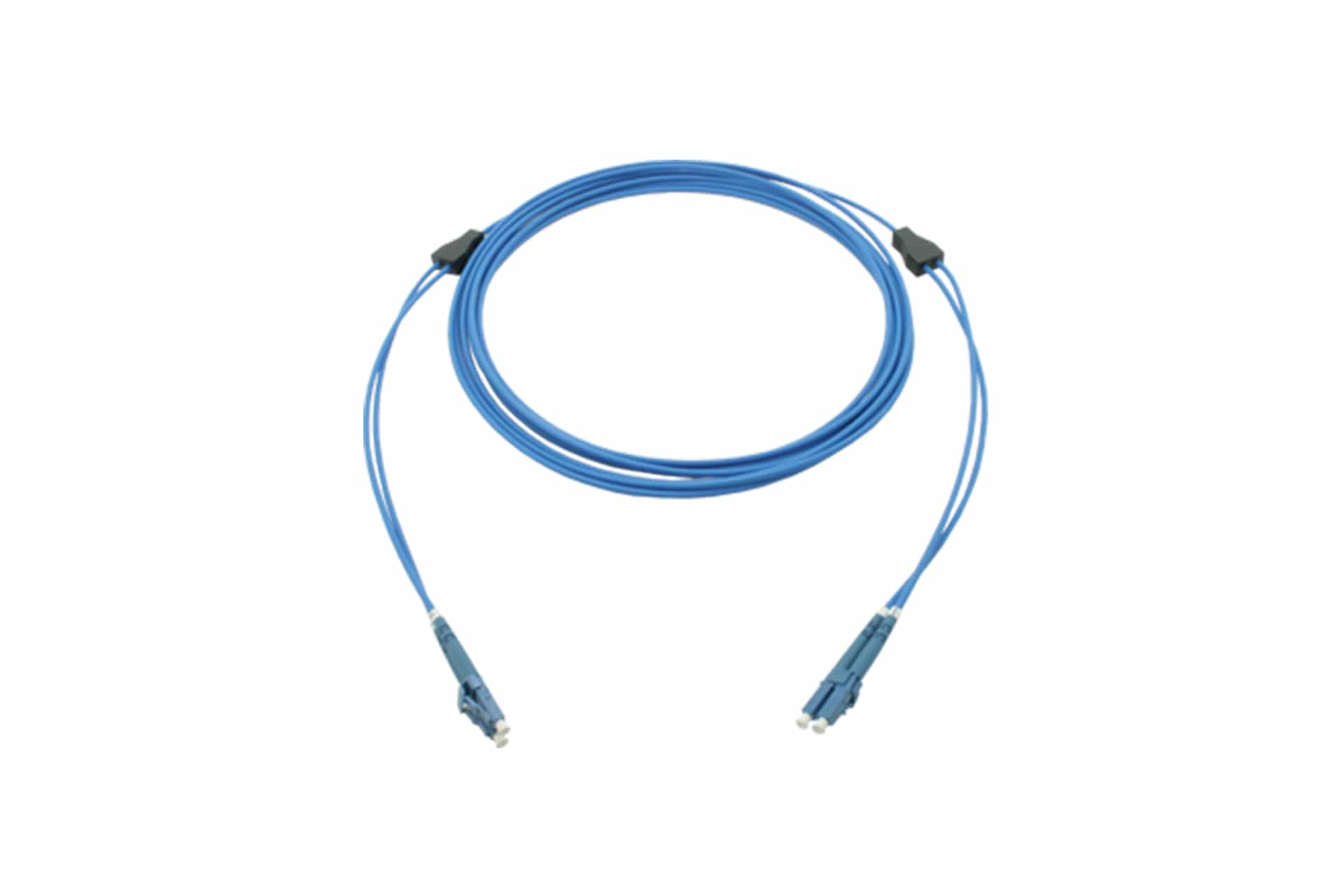

LC-LC Duplex 9/125 Armoured & Waterproof
BC Fiber Optic Waterproof and Armoured Patchcords. LC SM Duplex from 0.5m-20m.
Part nr.: BC-31-xxx
-

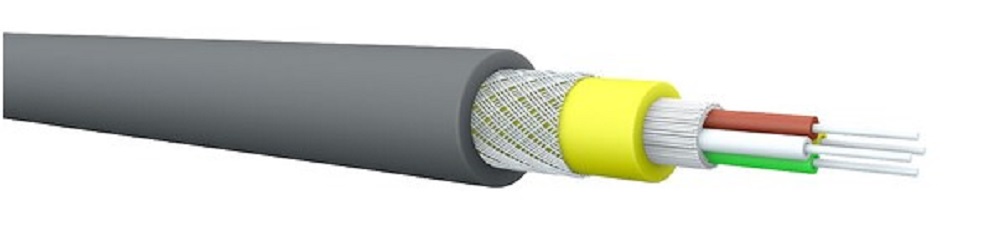

Bergen Cabling Maritime LAN AICI fiber
Fiber optic DNV approved cable for industrial, offshore and maritime environments. Suitable for both indoor and outdoor installation. The outer sheath is made from black UV-stabilized and weather resistant material which is SHF1 classified and may be exposed for shorter periods to fluids such as diesel and mineral oils.
Part nr.: BC-41-0xx
-
-

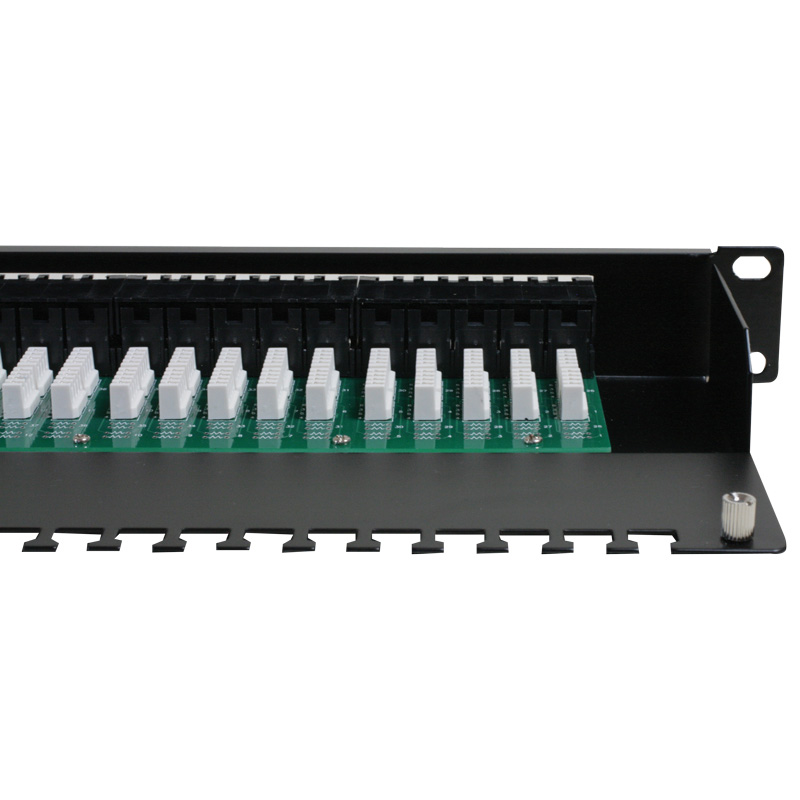

Patchpanel 1U Cat3 25 ports LSA Optronics
Patchpanel Cat3 for voice. 25 pairs.
Part nr.: CAT3LSA25-C
-
Patchpanel 1U Cat3 50 ports LSA Optronics
Patchpanel Cat3 for voice. 50 pairs.
Part nr.: CAT3LSA50-C
-
Pigtail Multi Mode OM3
Multi Mode OM3 pigtails
Part nr.: LCOM3B1AQ, LCOM3B2AQ-12, SCOM3BAQ1
-
Pigtail Multi Mode OM4
Multi Mode OM4 pigtails
Part nr.: LCOM4B1-EV, LCOM4B2EV-12, SCOM4B1-EV, STOM4B1-EV
-

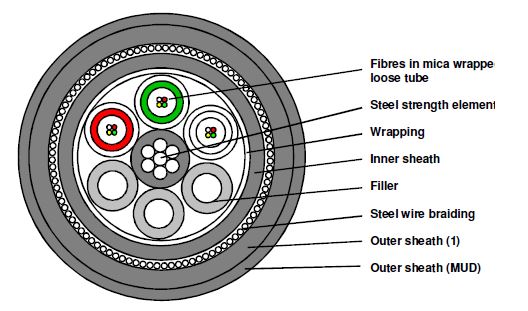

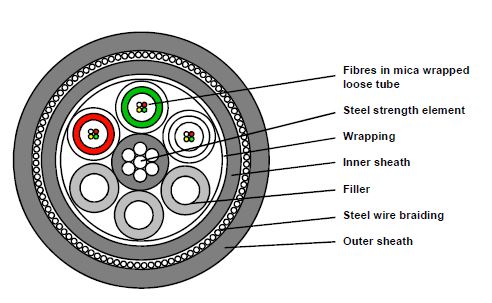

QFCI fire resistant cable for offshore, MUD
Optical cable for indoor and outdoor use in vital communication and emergency systems that need to be operational during fire. Outer MUD sheath
Part nr.: QFCIMUDxxxxx
-
QFCI fire resistant cable for offshore
Optical cable for indoor and outdoor use in vital communication and emergency systems that need to be operational during fire
Part nr.: QFCIxxxxx
-
-
Patchpanel 1U 24ports FC
Fiber optic sliding patchpanel with for up to 24 FC Single Mode or Multi Mode adaptors, black
Part nr.: S01FCxxx
-

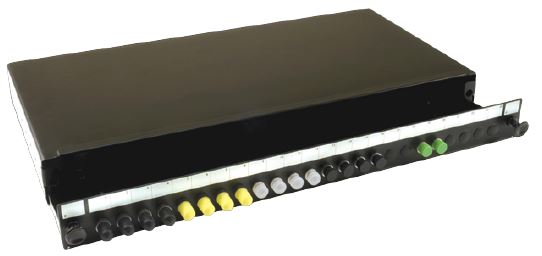

Patchpanel 1U 24ports ST
Fiber optic sliding patchpanel with for up to 24 ST Single Mode or Multi Mode adaptors, black.
Part nr.: S01STxxx
-

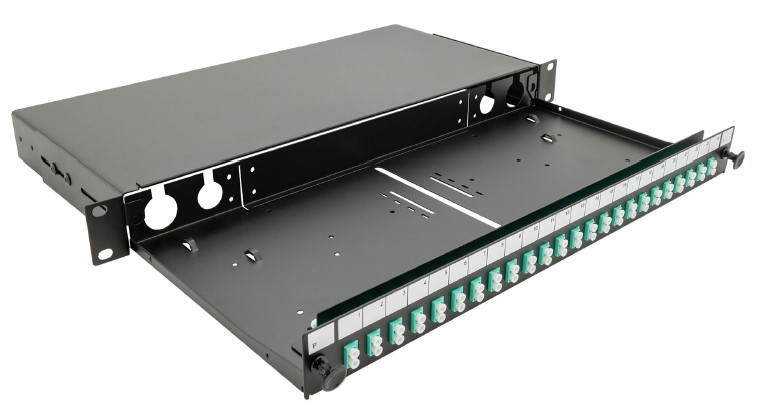

Patchpanel 1U 24ports LC
Fiber optic sliding patchpanel with for up to 24 LC duplex Single Mode or Multi Mode adaptors, black
Part nr.: S03LCxxx
-

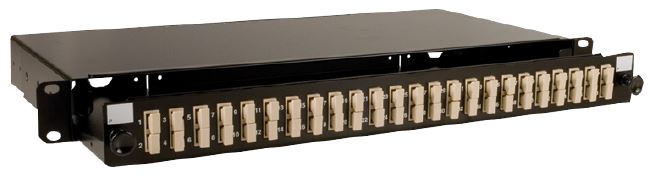

Patchpanel 1U 24ports SC
Fiber optic sliding patchpanel with for up to 24 SC duplex Single Mode or Multi Mode adaptors, black
Part nr.: S09SCxxx
-

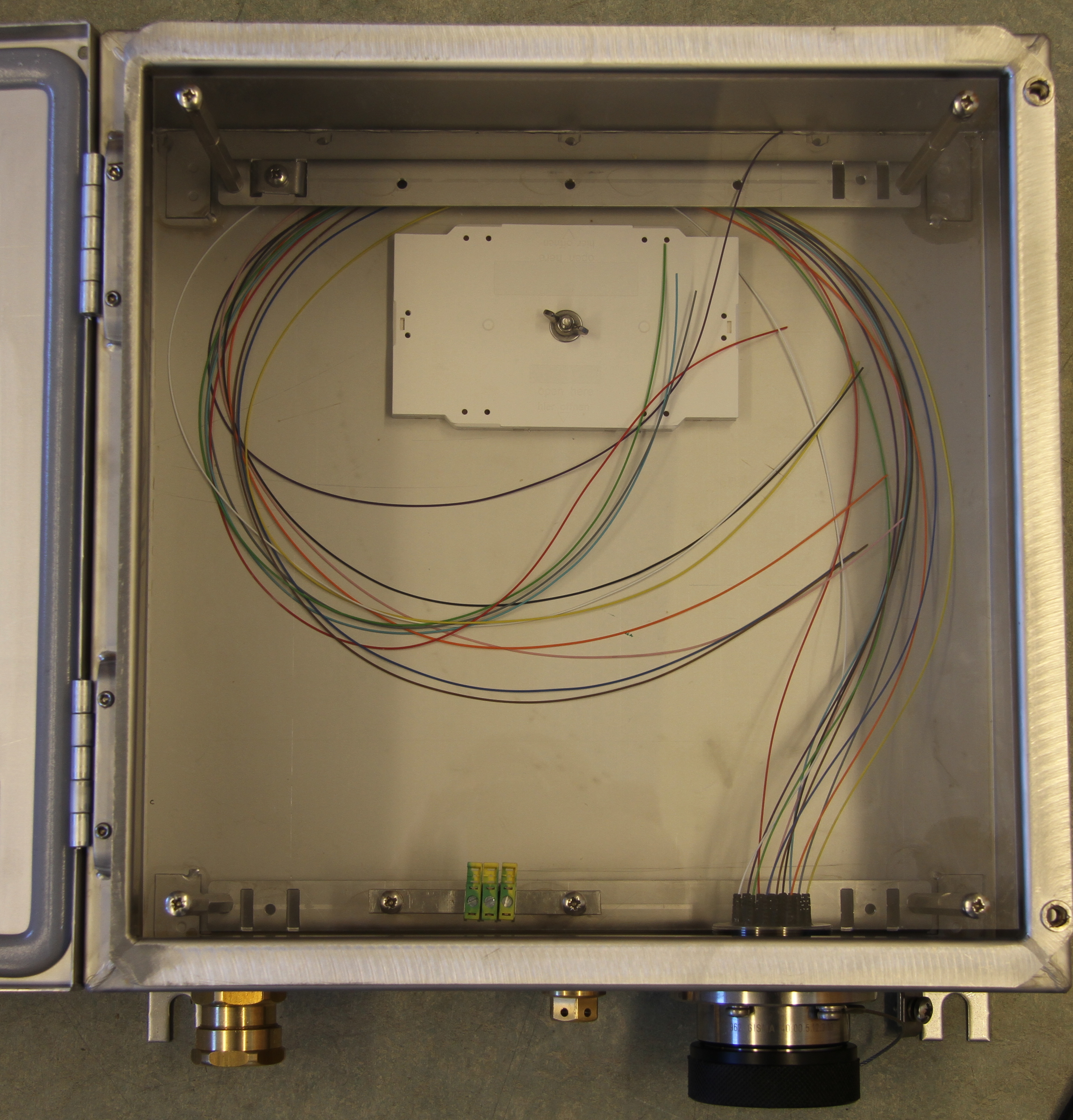

Hook-up junction box with Gisma 40
Hook-up junction box with Gisma 40 titanium receptacle, outdoor Exe approved for Zone 2.
Part nr.: SO-HU40-383815-xx
-

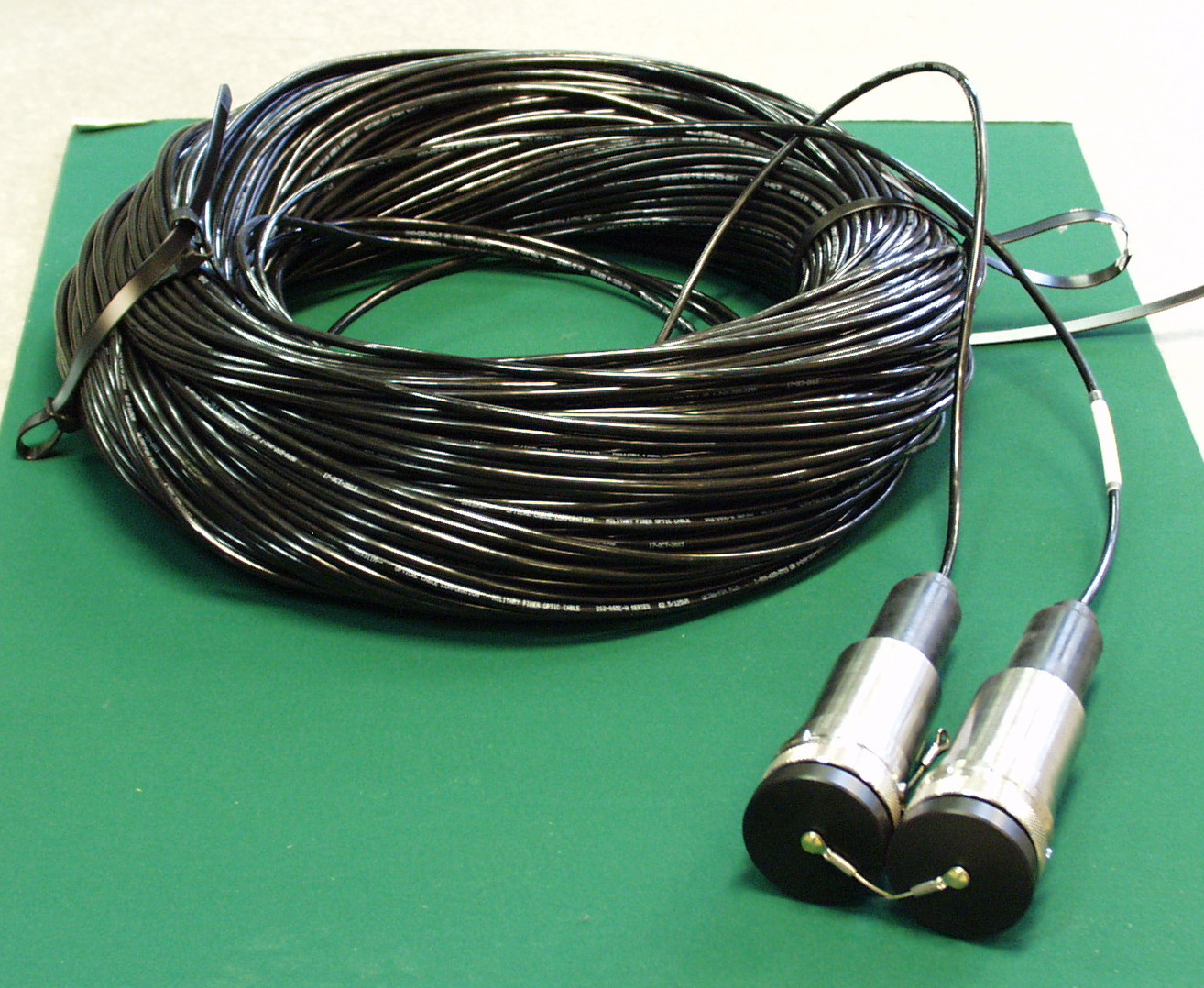

Hook-up cable with Gisma 40
Hook-up cable with Gisma 40 titanium plug for outdoor use.The cable used is a military tactical cable for extreme strengths.
Part nr.: SO-HU40-xx
-

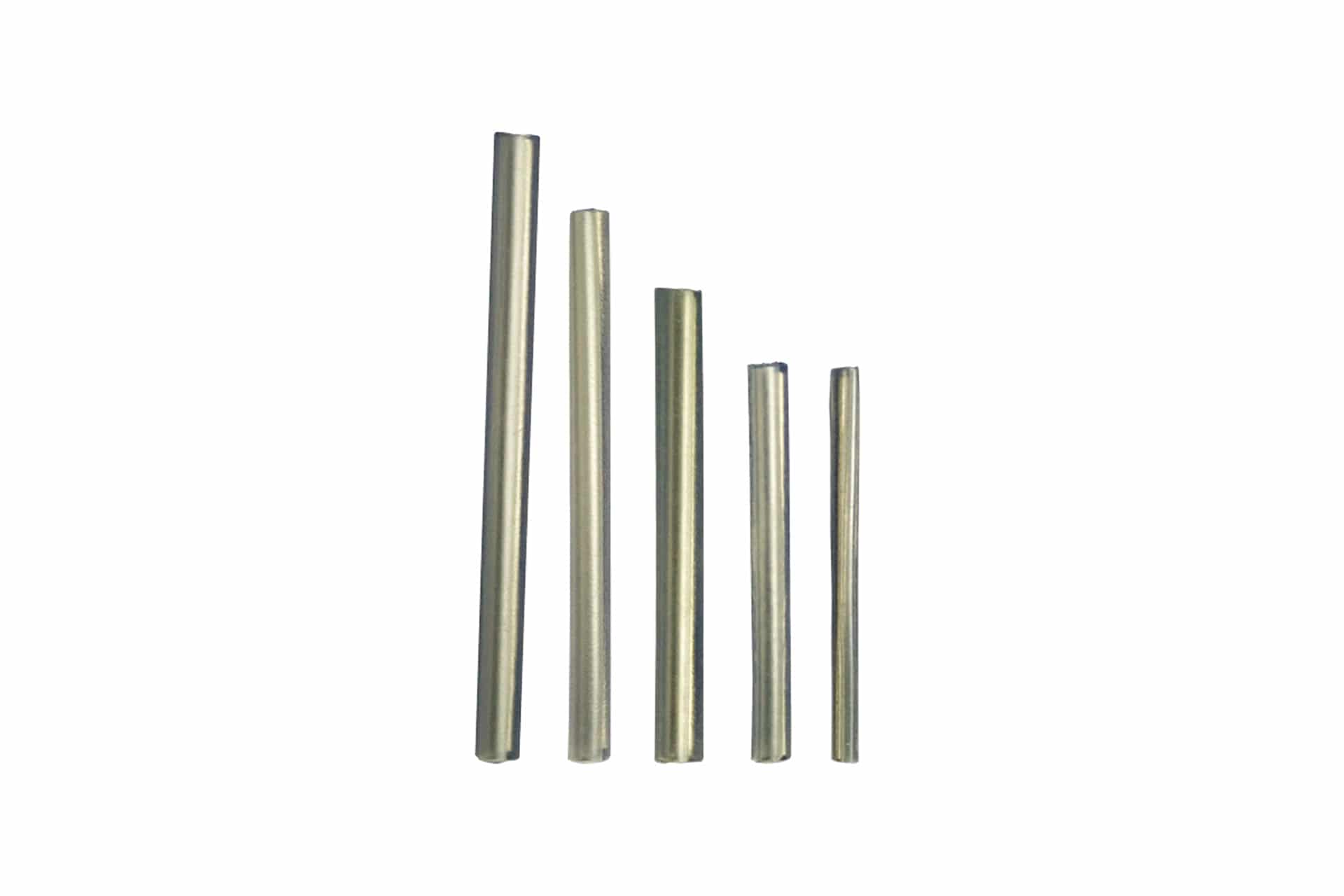

Splice protectors for optical fusion splicing
Splice protectors designed to maintain the strength & environmental stability of optical fiber cables after fusion splicing.
Part nr.: SPLICE45CLEAR, SPLICE60CLEAR
-

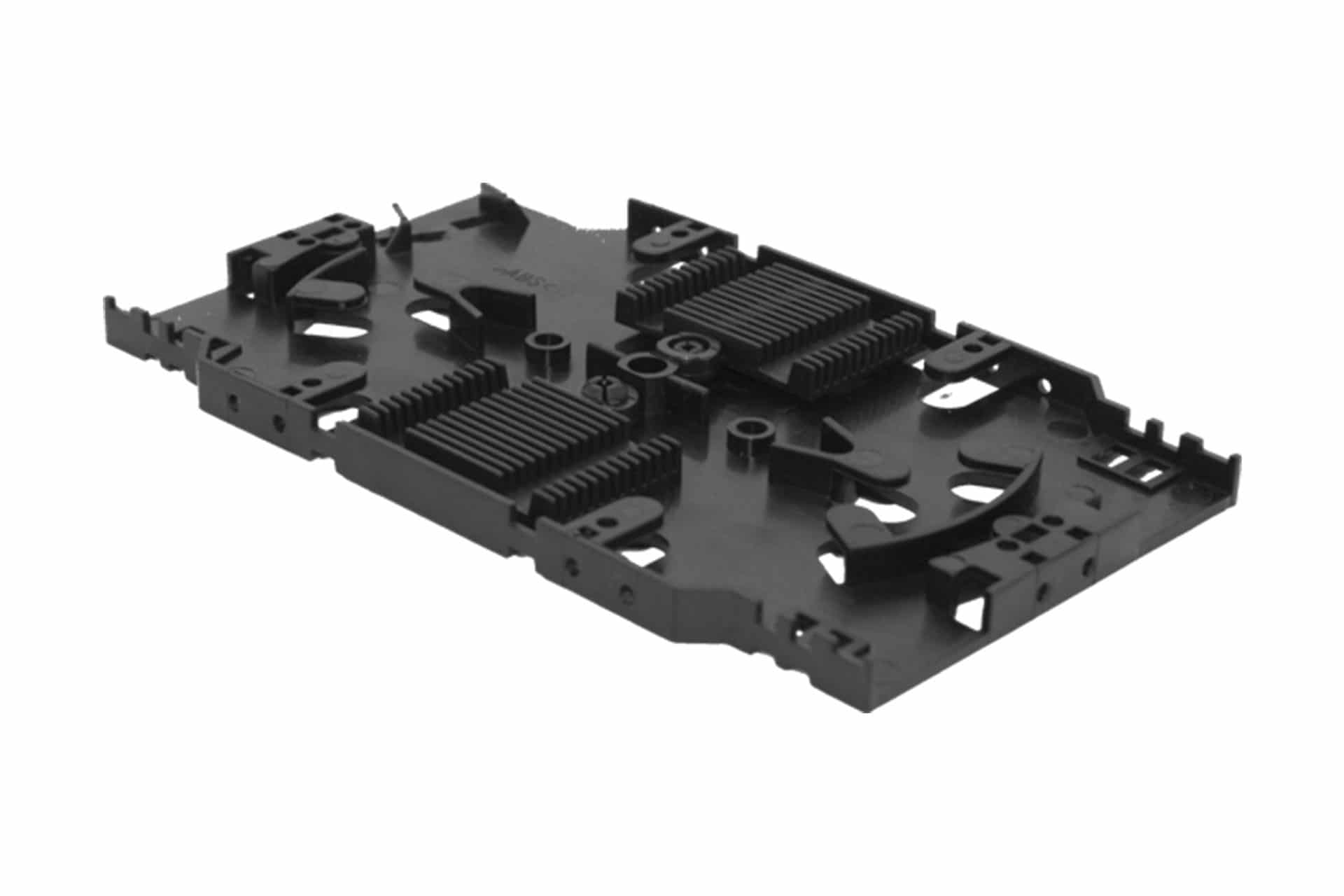

SPT03 Splice tray kit for 12 heat shrink splices, black with lid
This kit includes a splice tray that offers protection for up to 12 heat shrink splices, lid and splice holders. The tray ensures the minimum bend radius is protected and has multiple cable entry points.
Part nr.: SPT03
Reference projects:
-

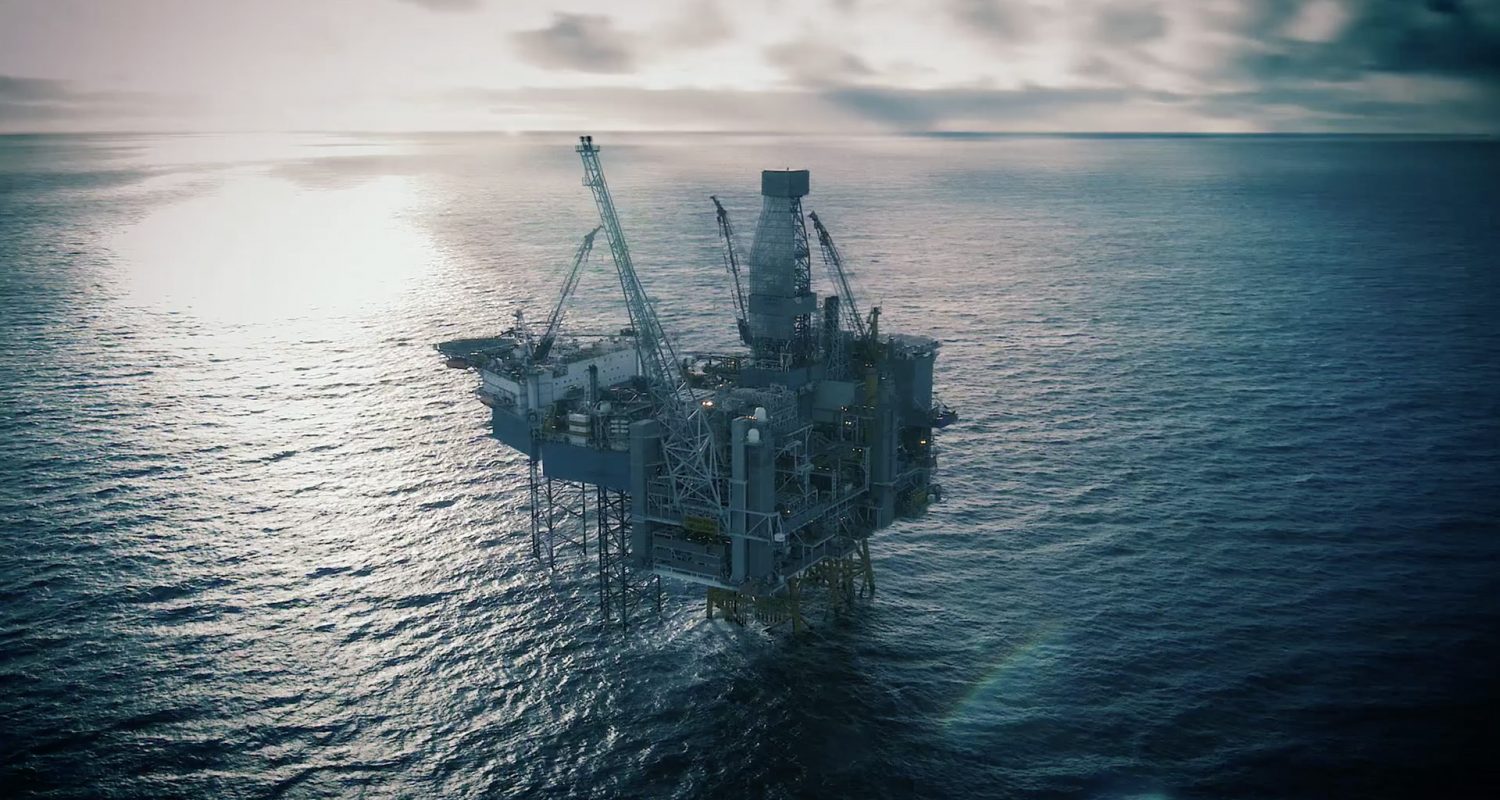

Edvard Grieg EPC Topside Project, Lundin, 2013-2014
Delivery of Bergen Cabling Cat6a network, Rittal cabinets and Sohome fibre optic hook-up solution
-

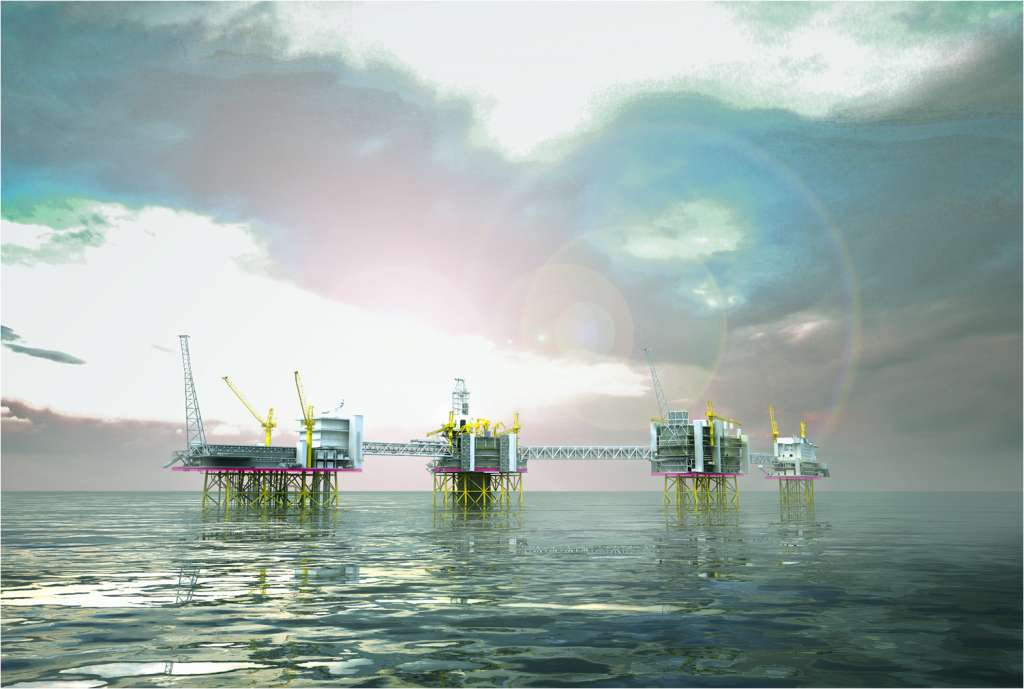

Johan Sverdrup, 2016-2021
Delivery of Bergen Cabling Cat6a network, fiber optics
-

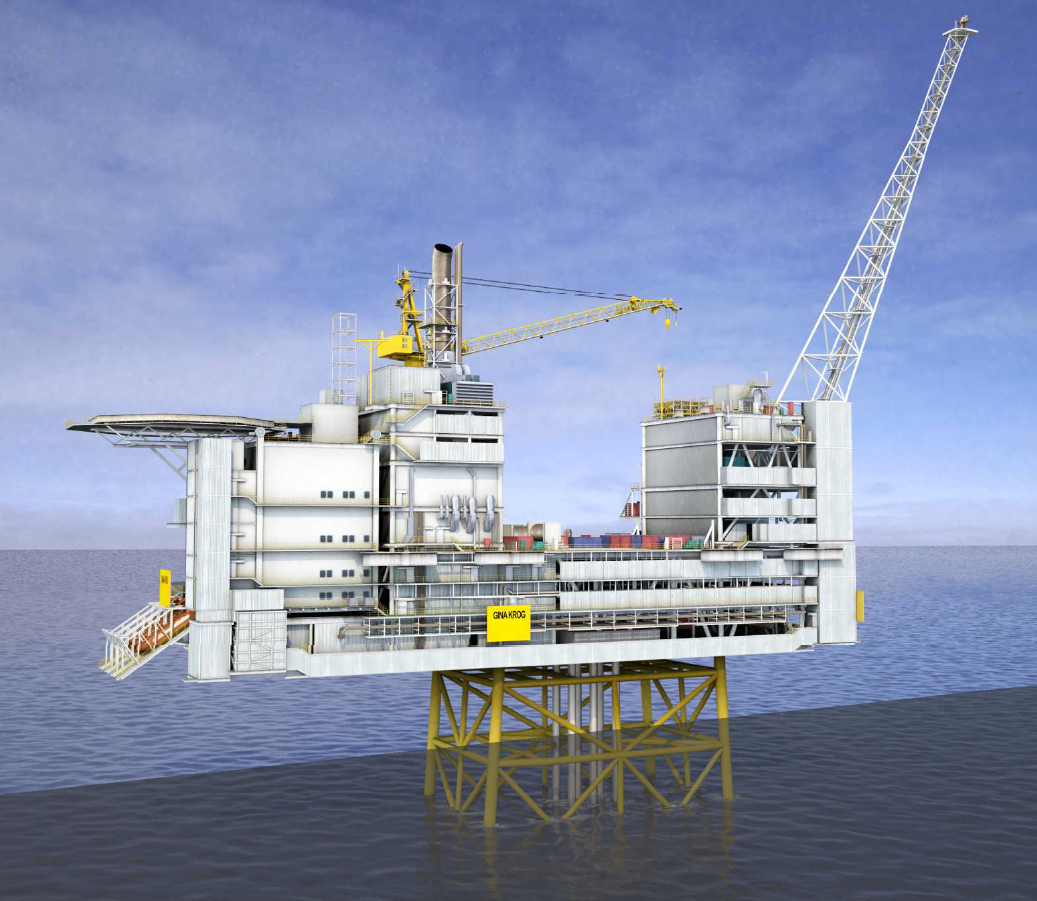

Gina Krog, 2014-2015
Delivery of Telecom, LAN equipment and fiber optics
