Introduction to Nek 700 series
This course covers the contents of relevant standards, providing participants with the knowledge they need to select correct communication categories, equipment and materials, and to make qualitatively correct installations. The course also covers applicable requirements to documenting and testing communications networks.
Target group:
Electrical personnel who work with electronic communications networks covered by the Norwegian Communications Authority (Nkom) authorization regulations. The course modules cover all types of installations including broadband networks, cabling in buildings and special applications on vessels and offshore.
Duration: 1 day
Part nr.:
-
Course in fibre optic test equipments
Fiber Optics Testing: Troubleshooting, Verification, and Certification
Fiber optic testers include tools and equipment to perform basic inspection and cleaning, basic troubleshooting and verification testers, certification testers, and advanced OTDR testers for troubleshooting and analysis of existing fiber optic cabling.
We tailor the course according to customer needs within fiber and Category cable Cat6/6A - Cat7/7A.We can also look at specialization in testing instruments like Lantek, Fluke, Anritzu. Larger groups from the same company are welcome to contact us for a fixed price.
Duration: 3-4 hours
Part nr.:
-
Draka QANI-CI Cca R01 Fire Resistant fiber optic cable
This cable can be used for LAN and WAN backbones, telecom access lines, fibre to business, fibre to the building drop connections and tunnels/galleries; as well as fibre to the home drop and access connections. With its FireRes® sheathing this cable is ideal for indoor installations. It is CPR Class Cca cable with high flame retardant and high fire-resistant performances. The cable with corrugated steel tape armouring is rodent proof. The cable is well suited for installation in ducts and on trays indoor and shorter outdoor applications. Can be used in tunnels in accordance to cable class 3 in NEK601 (11.6.3)
Part nr.:
-
Patchguide 1HU Black with brush strip, 4 cable rings
This cable management bar provides an innovative solution for supporting cables. The 1U bar also includes a brush strip feature which provides access into the rear of the rack, having a brush instead of an open channel encourages the flow of air within the rack.
Part nr.: 1UCABLEBAR/BR
-
Fire Resistant Cat7 S/FTP DNV approved LSZH-SHF2
Fire resistant Cat7 S/FTP cable for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units where transmission during fire is critical.
- Fire Resistant
- Red
- DNV
- SHF2 sheath
- UV protection
- AWG 23/1
Part nr.: 9MGF009103
-
Bergen Cabling Maritime LAN Cat7 S/FTP DNV approved cable with SHF1 sheath
Cat7 DNV certified cable meant for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units. Also available on 2000m drums (Part number BC-10-001-2K)
- 500m drums
- 2000m drums
- DNV approved
- BV approved
- Flame retardant
- Halogen free
- SHF1 sheath
- UV protection
- Eqhub ID: 100002210
Part nr.: BC-10-001
-
Bergen Cabling Maritime LAN hybrid cable Cat7+2SM fibres, SHF1 and MUD sheath
DNV GL certified hybrid cable with both Cat7 and 2x Bend Bright single mode fibers in one cable. The cable has an additional fire retardant, halogen-free low smoke MUD protected outer sheath.For use in tougher electrical and mechanical environment, including ships and offshore units
- Bend Bright fiber
- 500m drums
- Extra MUD sheath
- Flame retardant
- Halogen free
Part nr.: BC-10-004
-
Bergen Cabling Maritime LAN Cat7 cable with SHF1 and MUD sheath
Cat7 DNV certified cable meant for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units. The cable has an additional fire retardant, halogen-free low smoke MUD protected outer sheath
- 500m drums
- Extra MUD sheath
- Flame retardant
- Halogen free
- Eqhub ID: 883350
Part nr.: BC-10-005
-
Bergen Cabling Maritime LAN Cat6A S/FTP DNV approved cable with SHF1 sheath
Cat6A DNV certified cable meant for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units
- Cat6a 500 MHz
- 10Gbit
- 500m drums
- LSOH-FR
- DNV approved
- Elnr: 1000800
- Eqhub: 100000300
Part nr.: BC-10-021
-
Bergen Cabling DNV approved Maritime LAN S/FTP Cat6A stranded cable
Cat6A S/FTP DNV approved cable meant for use as installation/horizontal cable in tougher electrical and mechanical environment, including ships and offshore units. Stranded version.
- Cat6a 500 MHz
- Stranded (23/7)
- 10Gbit
- 500m drums
- LSOH-FR
- DNV approved
Part nr.: BC-10-025
-
Bergen Cabling Maritime LAN Connector Cat6A STP DNV, Keystone
Cat6a DNV certified connector for applications up to 10 Gbit. Can be used with Bergen Cabling Maritime LAN patchpanels and outlets. Also suitable for use with other vendors with keystone footprint
This is now replaced by BC-11-006
Part nr.: BC-11-004
-
-
Bergen Cabling Toolless Cat6a Male Connector
Fully screened Cat.6A male connector RJ 45 for communication up to 500 MHz, 100 Ω. The connector can be used with the Maritime LAN Cat.6A cable for field terminations. The connector is made for application up to 10 Gigabit Ethernet on solid and stranded wires, and shall be handled according to installation manual.
- 10Gbit
- AWG 23-26
- Max cable OD 7.8mm -/+ 0.2mm
Part nr.: BC-11-005
-
Bergen Cabling Maritime LAN Cat6A STP Connector, Keystone v2, DNV
Fully screened Cat6A connector RJ45 for communication up to 500 MHz, 100 Ω. The connector can be used with the Maritime LAN 24 port Patchpanel and outlets fits for the connector in a Cat6A installation, or keystone interface from other vendors. The connector is made for application up to 10 Gigabit Ethernet on solid wires, and shall be handled according to installation manual and together with the tool for the connector. This connector replaces the BC-11-004.
- 10 Gbit
- Cat6a 500MHz
- 22 - 24 AWG, solid wire
- 22 - 26 AWG, stranded wire
Part nr.: BC-11-006
-
BC Outlet 1xRJ45 STP Cat6A + Duplex LC 9/125
Outlet for use with the hybrid cable. Comes with Cat6a connector and LC Duplex adapter.
- Hybrid Outlet
- Cat6a + LC
Part nr.: BC-12-236
-
Patchpanel XLR 16p Bergen Cabling Maritime, empty
Heavy duty XLR solution for maritime and offshore installations. Suitable for XLR adapters and other adapters with same form factor.
Part nr.: BC-13-020
-
BC Slim Patchcord Cat6A FTP LSOH
BC Slim Patchcords Cat6A FTP. low smoke halogen free. Standard lengths 0.2m to 20m. Standard colour is grey, but other colours may be available on request.
Bergen Cabling Cat6a FTP slim patchcords are designed for high density environments such as data centers and telecommunication rooms. The outer diameter is 40% reduced compared to traditional patchcords thus saving space in e.g. a rack.
Part nr.: BC-16-1xx
-
BC Patchcord Cat6 FTP Waterproof
BC Waterproof Patchcords Cat6 FTP black. Lengths from 5m-25m.
Part nr.: BC-21-xxx
-
LC-LC Duplex 9/125 Armoured & Waterproof
BC Fiber Optic Waterproof and Armoured Patchcords. LC SM Duplex from 0.5m-20m.
Part nr.: BC-31-xxx
-
Bergen Cabling Maritime LAN AICI fiber
Fiber optic DNV approved cable for industrial, offshore and maritime environments. Suitable for both indoor and outdoor installation. The outer sheath is made from black UV-stabilized and weather resistant material which is SHF1 classified and may be exposed for shorter periods to fluids such as diesel and mineral oils.
- Tight buffer
- Steel wire braiding
- Indoor and outdoor
- LSOH-FR
- DNV approved
- Flame retardant
- Halogen free
Part nr.: BC-41-0xx
-
Basic fiber Optic Training Course
This course is for anyone involved in fiber optic communications from specifying and designing to actual installation. It has been designed to ensure that the student understands the emerging and ever increasing market for fiber optic communications, how fiber transmission 'works' and all the components involved.
The goal for this course is that the participants will get the knowledge they need to select correct equipment and materials and get a basic knowledge of fiber optic cables both single and multimode and the different areas for these to be used. We will also focus on the testing and documentation needed after completing a job.
Duration: 2 days
Part nr.: KURSFIBER
-

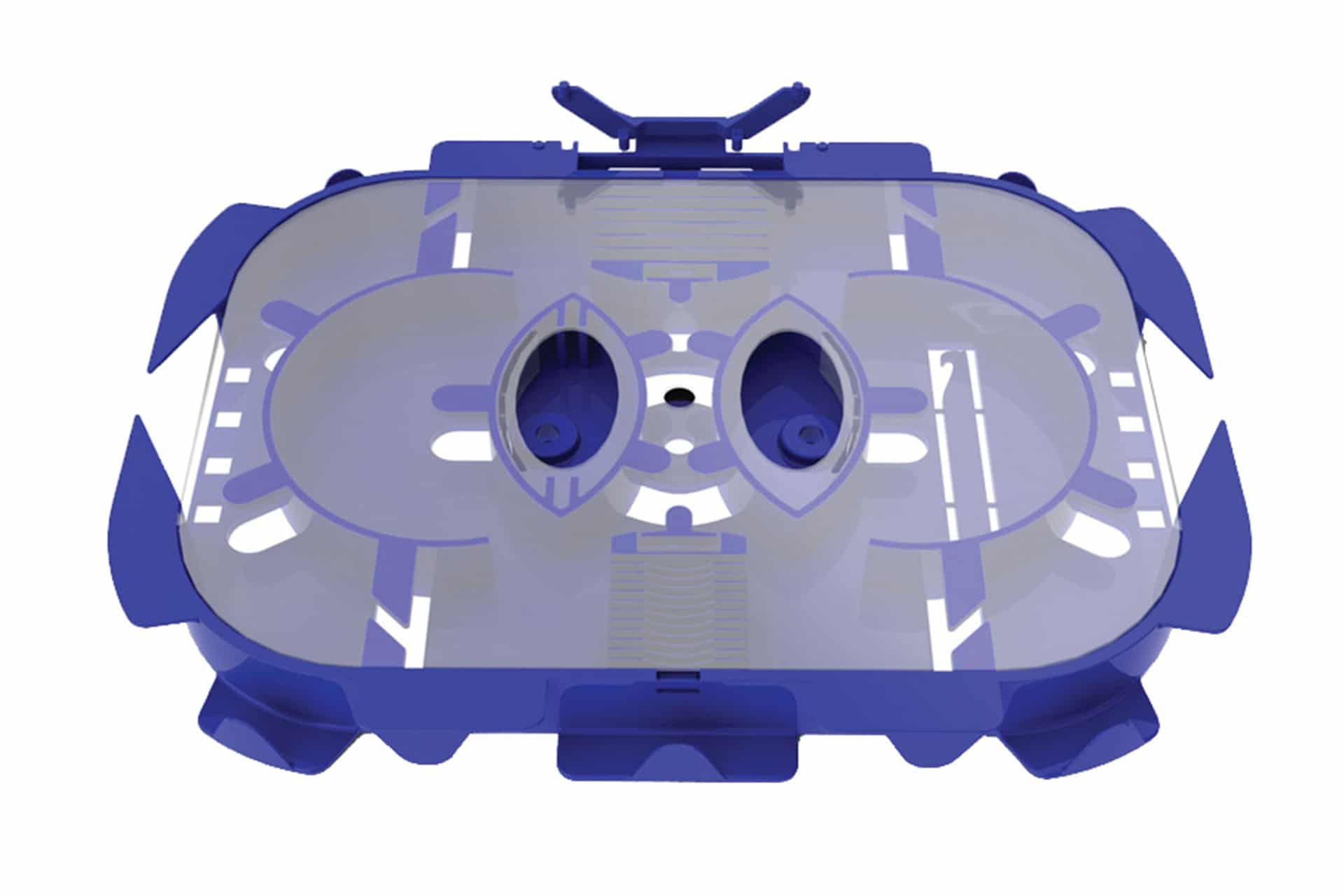

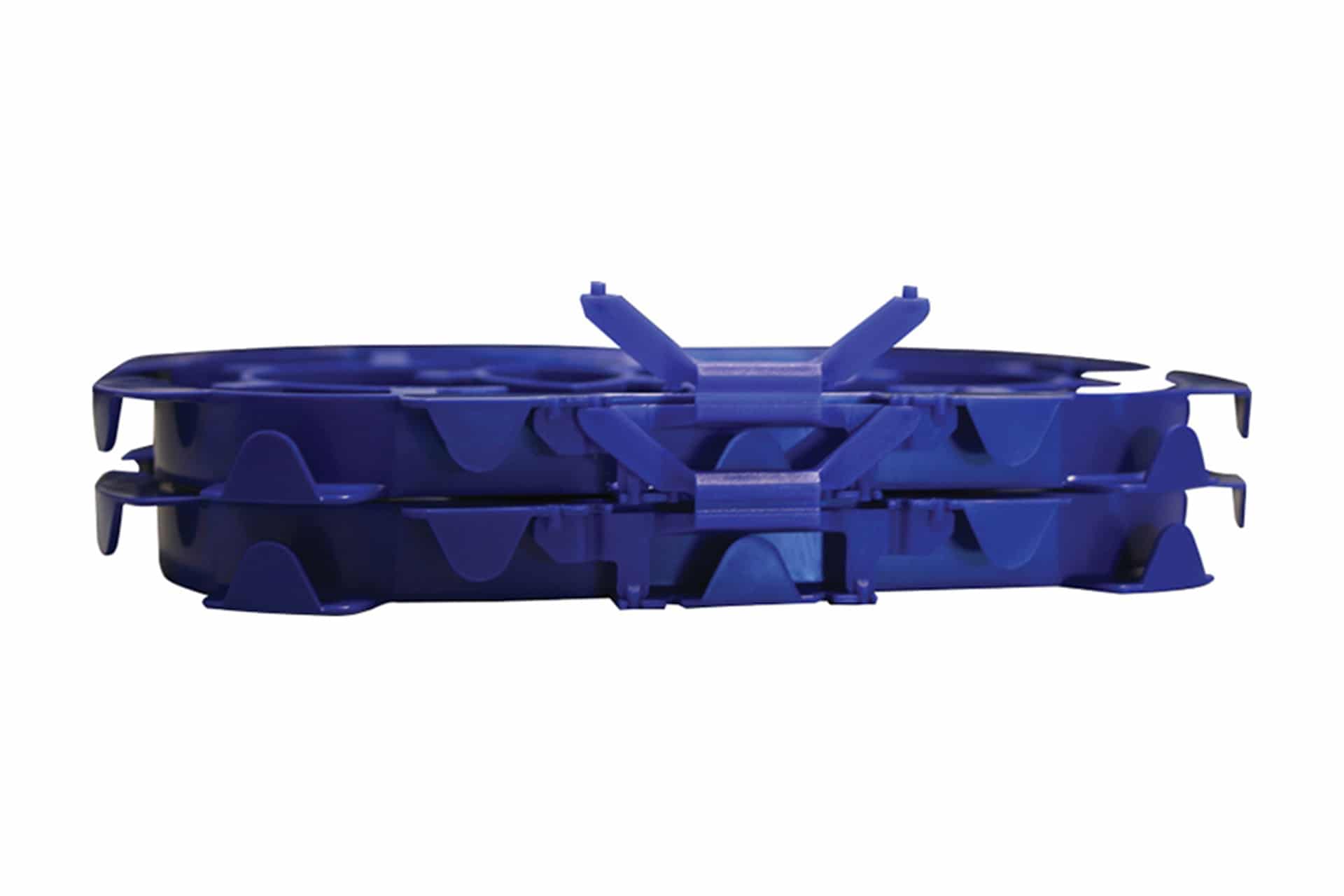

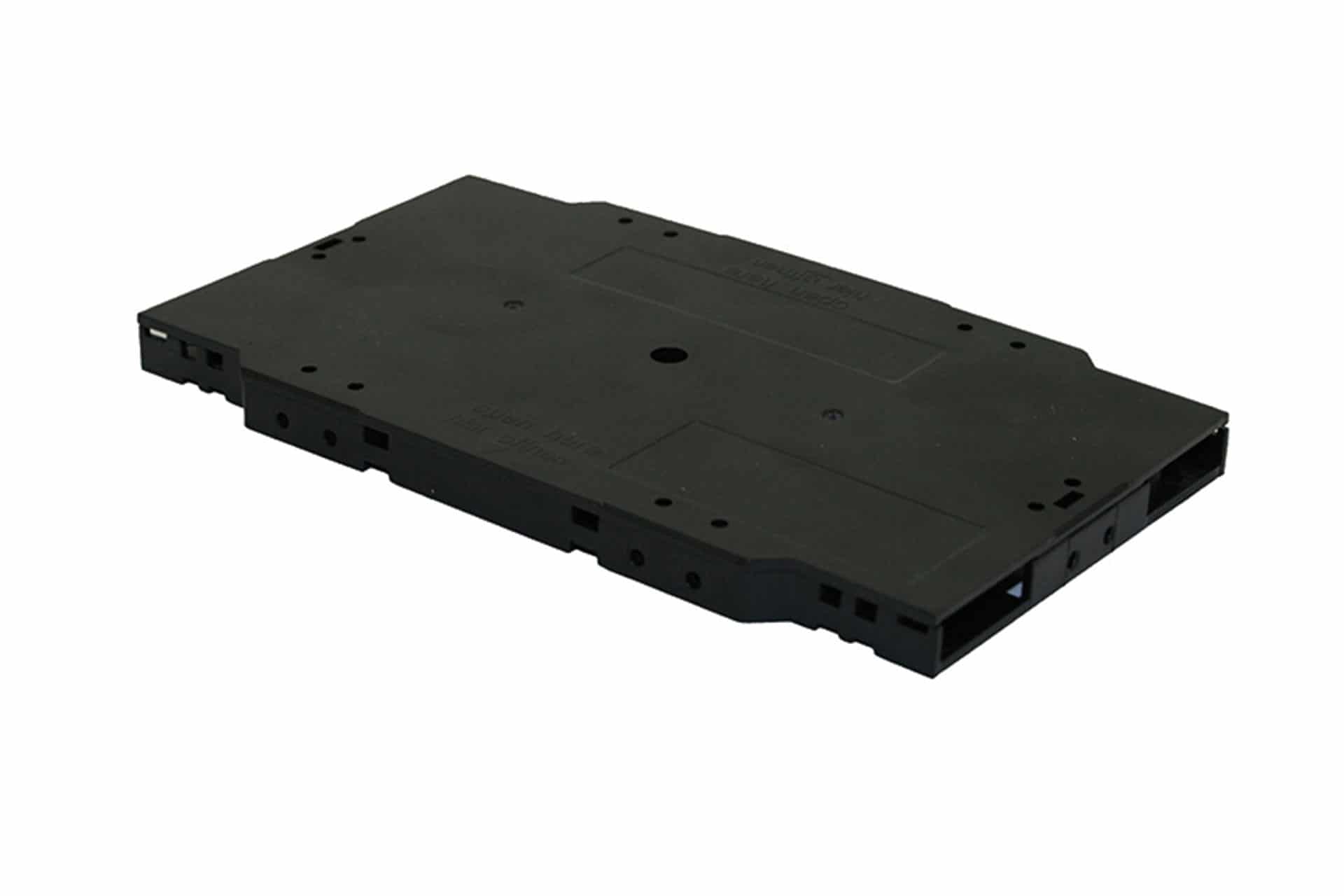

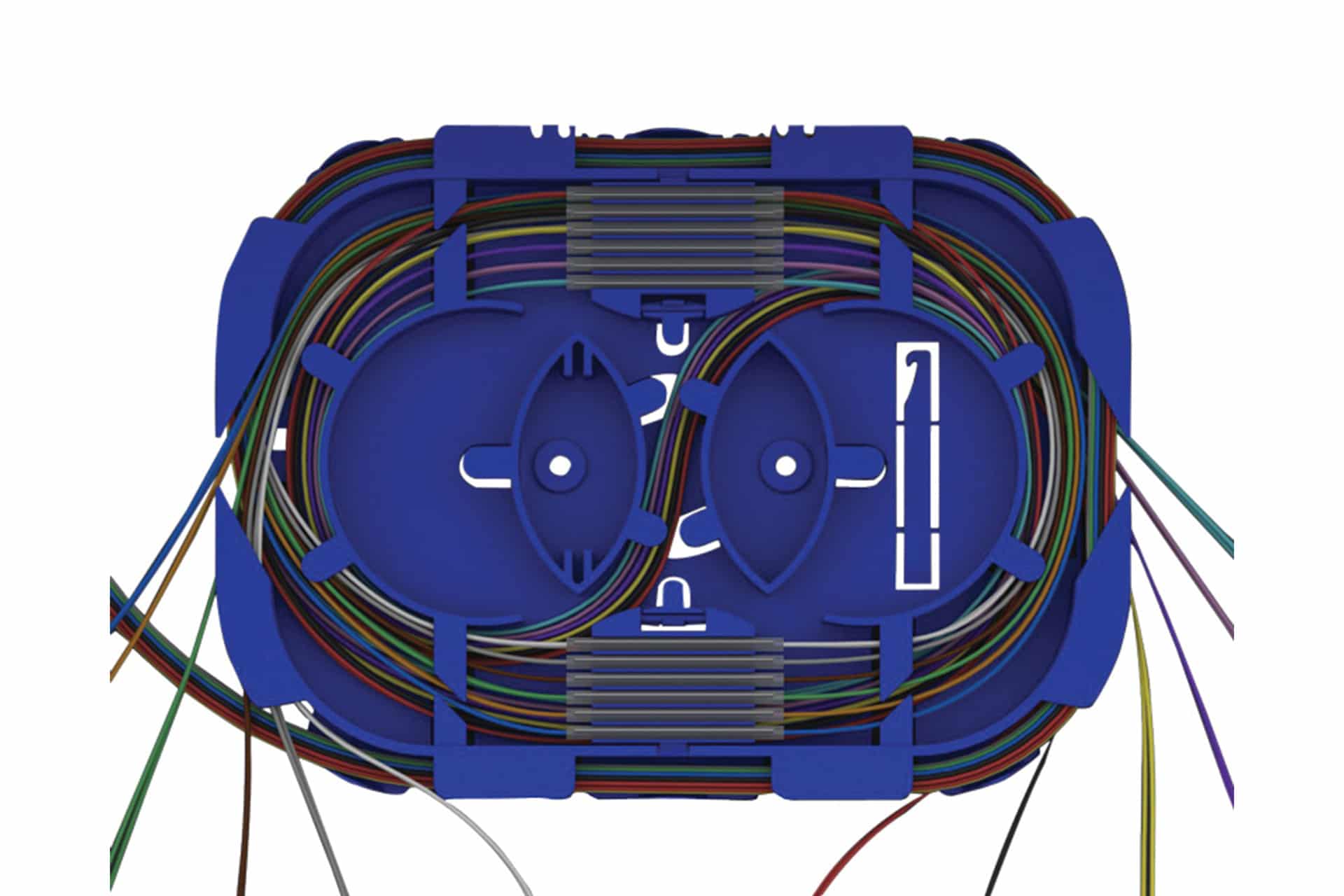

SPT01 Speedway Fiber Splice Tray for 24 fibers

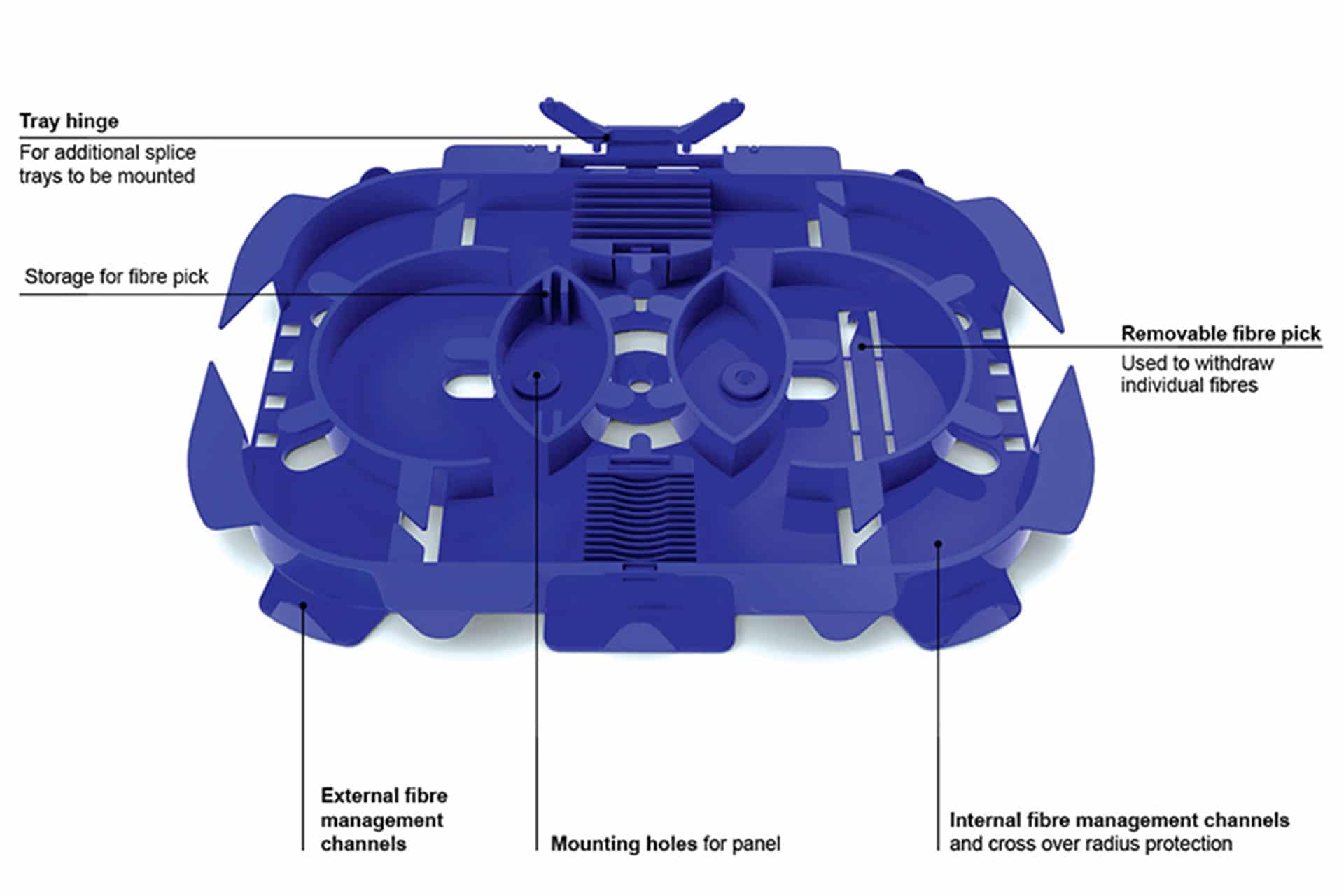

Introducing the Speedway splice tray with unrivaled ease of use and flexibility. Featuring a unique external fiber pathway and pivoting splice holder arrangement this tray redefines the concept of splice management, combining fiber management and splicing control in one product. Due to its accommodating internal dimensions the Speedway splice tray is able to comfortably hold 24 splices with heatshrink style splice protectors with up to 900μm buffered fibers.
Part nr.: SPT01
